Milling Machine CNC Oil Skimmer Coolant Filtration Cleaning Floating Oil
Product Details:
| Place of Origin: | China |
| Brand Name: | Diang Tianke |
| Model Number: | datk-ys |
Payment & Shipping Terms:
| Price: | Negotiable |
|---|---|
| Delivery Time: | 7-15 workdays |
| Payment Terms: | LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram |
|
Detail Information |
|||
| Model NO.: | Datk-ys | Installation: | Wall-mounted |
|---|---|---|---|
| Centrifuge Type: | Disc Centrifuge | Distillation Equipment Type: | Steam Distillation Equipment |
| Extraction Tower Type: | Vibration Plate Tower | Pressure: | High Pressure |
| Weight: | 49kg | Size: | Customizable |
| Voltage: | 220V | Power: | 150W |
| Ozone Value: | 500mg/M3 | Processing Capacity: | 1000-3000L/H (Adjustable) |
| Application: | CNC Machine | Capacity: | 10-100L |
| Frequency: | 50Hz | Material: | Stainless Steel |
| Max Speed: | 3000rpm | Model: | Coolant Oil Separator |
| Power Source: | Electric | Separation Efficiency: | 99% |
| Separation Method: | Centrifugal | Warranty: | 1 Year |
| Highlight: | Milling Machine CNC Oil Skimmer,CNC Oil Skimmer Coolant Filtration,Coolant Filtration Cleaning Floating Oil |
||
Product Description
Product Description
Vertical milling machine cooling box purification, coolant filtration, and cleaning of floating oil
Product details:
Attribute: A cutting fluid reuse equipment with a purification rate of over 98%
Purpose: Oil removal, sterilization, deodorization, and improvement of cutting fluid quality

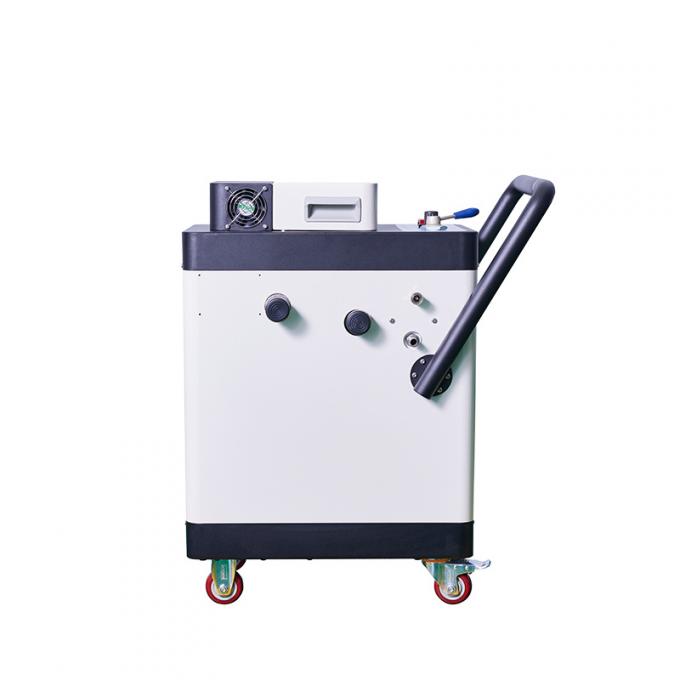

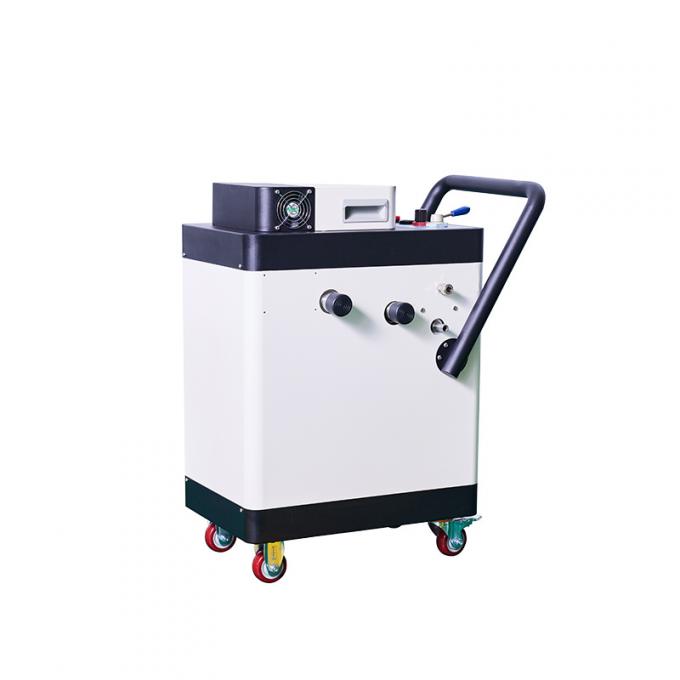

Product name: Di Ang Tian Ke Oil Water Separators
Performance removal of floating oil, sterilization and deodorization, extending the service life of cutting fluid
Features: Pure physical purification, no other chemical additives added, zero consumables.
Working mode: capable of 24-hour online cyclic processing
Business model can be OEM/customized
| Processing capacity | 1000-3000L/H (adjustable) |
| Ozone value | 500mg/m3 |
| Floating oil removal rate | Over 98% |
| Voltage | 220V |
| Power | 150W |
| External dimensions | 620 * 420 * 850mm |
| Applicable object | water-based cutting fluid equipment |
| Weight | :49kg |
| Filtering accuracy: | 0.3mm (customizable) |
| Ozone value: | 100-150mg/H |
| Floating oil removal rate: | 98% or above |
Function:
(1) Impurity filtration: Filter impurities such as iron powder and aluminum powder suspended on the surface of the cutting fluid to avoid recoil adhesion or scratching of the workpiece surface.
(2) Oil water separation: Remove various miscellaneous oils (guide rail oil, hydraulic oil, etc.) from the surface of the water tank to quickly achieve oil water separation.
(3) Aeration sterilization: Through the aeration circulation function, various microorganisms in the cutting fluid can be effectively killed, and sterilization and deodorization can be achieved.
(4) Water quality purification: Do not change the liquid phase of the cutting fluid, and regularly replenish new liquid after purification to maintain concentration.
(5) Cost reduction: Significantly reduce the cost of purchasing new liquids and treating waste liquids.
(6) Extending the lifespan of a cutting tool: With the improved lubrication and rust resistance of the cutting fluid, the machining accuracy of natural workpieces increases, and the lifespan of the cutting tool also increases.
(7) Improving the workshop environment: reducing skin allergies among workers, reducing corrosion to machine tools, and improving the workshop environment.

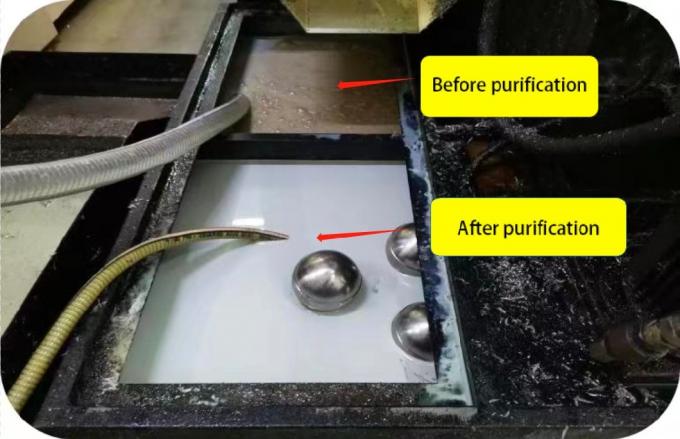

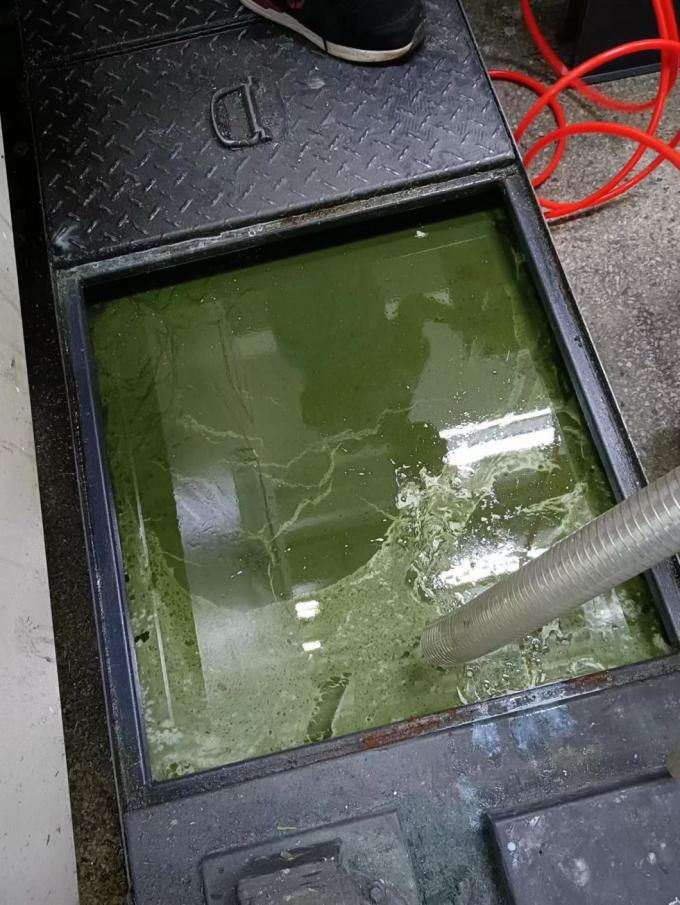

(Before purification)

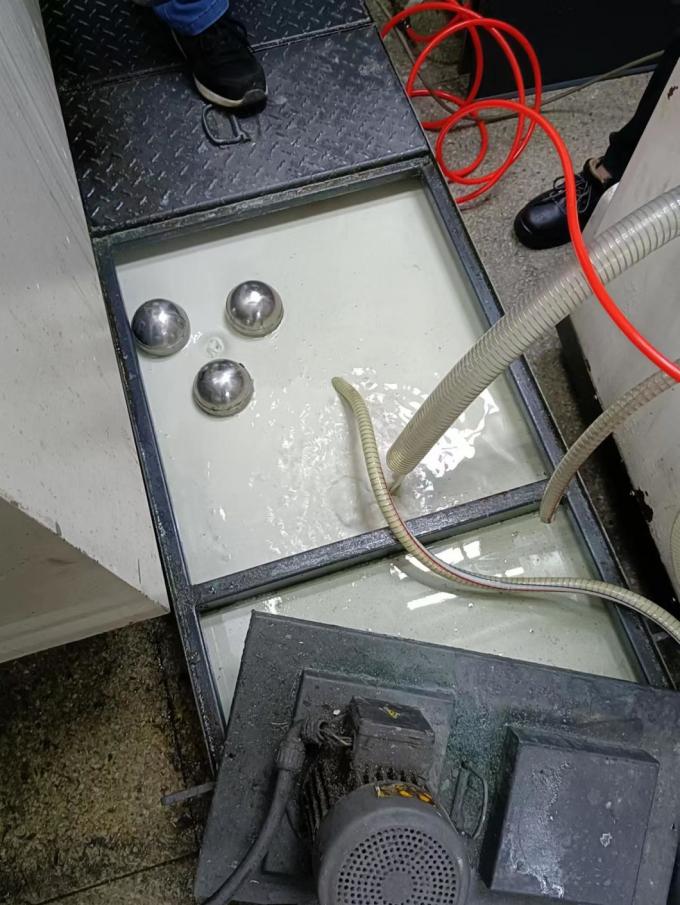

(After purification)
