EDM Wire Cutting Fluid Low Foam Metalworking Fluids Cutting Oil For Drilling Steel
Product Details:
| Place of Origin: | China |
| Brand Name: | Diang Tianke |
| Certification: | ISO |
| Model Number: | T01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 barrels |
|---|---|
| Price: | Negotiable |
| Packaging Details: | plastic barrel、iron barre |
| Delivery Time: | 7-15 workdays |
| Payment Terms: | LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram |
| Supply Ability: | 15Kg/barrel can produce 2,500 barrels per week |
|
Detail Information |
|||
| Application: | Fast Wire EDM Wire Cutting Processing | Exterior（Original Solution）: | Yellow Transparent Liquid |
|---|---|---|---|
| Exterior（10% Dilution）: | Yellow Transparent Liquid | Density (at 20°C): | 1.025g/cm³ |
| PH Value（5% Dilution）: | 9.1 | Packaging: | 15Kg/plastic Barrel, 170Kg/iron Barre |
| Shelf Life: | 18 Months | Use Ratio: | Usually Use Ratio 1:10-15. When Cutting Thick Parts (200-500mm), The Recommended Ratio Is 1:5 |
| Highlight: | EDM Wire Cutting Fluid,EDM Wire Metalworking Fluids,Metalworking Cutting Oil For Drilling Steel |
||
Product Description

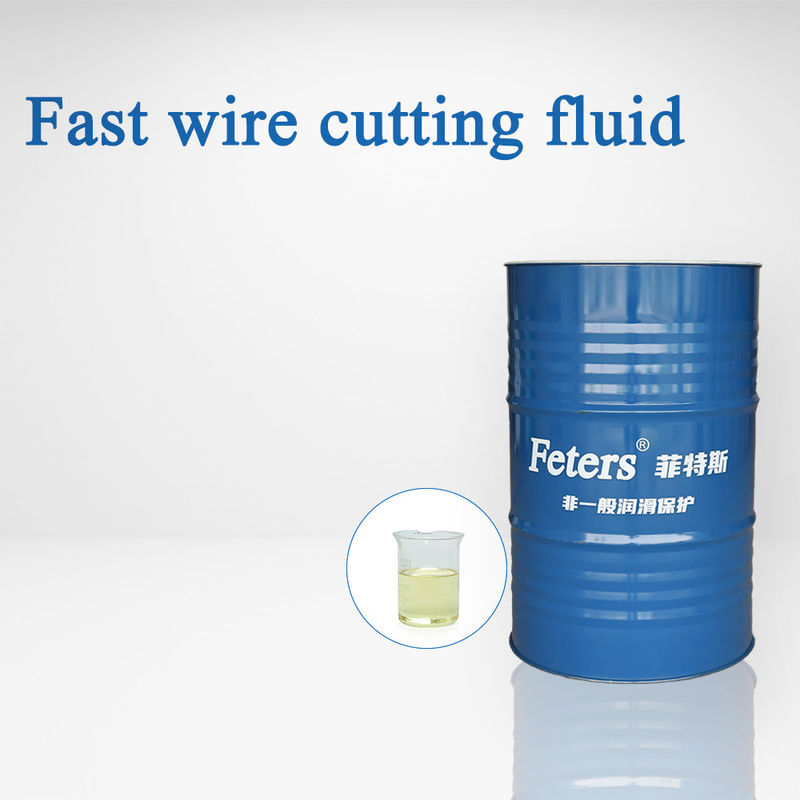

Feters-T01 Fast wire cutting fluid
Fast wire cutting fluid, environmentally friendly, low foam, efficient cutting,used for high current processing
Product Description
This product is a fully synthetic and environmentally friendly wire cutting fluid that does not contain harmful ingredients such as chlorine, phenols, and nitrites. This product is not only comparable to traditional emulsified oil in terms of processing speed, discharge, accuracy, etc., but also brings a clean and comfortable working environment. It is a good substitute for traditional emulsified oil.
Applications
Suitable for fast wire EDM wire cutting processing.
Product Advantages
- Environmentally friendly formula, does not stink and has a longer service life;
- The product has good cleaning performance and the processed surface is not easy to get sticky;
- The discharge sparks are active, the processing efficiency is high, and thick parts can be processed;
- Excellent lubrication, less molybdenum wire loss, good smoothness of the processed surface, no streaks;
- Good anti-rust, light smell, less foam, and maintain a good processing environment.
Typical Data
| Serial Number | Project | Unit | Numerical Value | Detection method | |
| 1 | Exterior(Original solution) | -- | Yellow transparent liquid | Visual inspection | |
| 2 | Exterior(10% dilution) | -- | Light yellow transparent liquid | Visual inspection | |
| 3 | Density (at 20°C) | g/cm³ | 1.025 | IP365 | |
| 4 | PH Value(5% dilution) | -- | 9.1 | BS1647 | |
| 5 |
Anti-rust (5% dilution) |
Iron | -- | 0% | IP287 |
| Aluminum | -- | --- | GB/T6144 | ||
Recommended concentration ratio for use
Use the ratio 1:10-15. When cutting thick parts (200-500mm), the recommended ratio is 1:5, which can be adjusted according to the actual situation.
Note: The above are typical data and do not represent product indicators. Material safety data for the above products are available upon request. The above data can be used to obtain corresponding information on storage, safe handling and disposal. The above data has been tried to be as accurate as possible, but may change due to future recipe changes.
Precautions for use
- When using it for the first time, the water tank and pipes of the equipment must be cleaned before adding new liquid;
- Use clean tap water to prepare the solution. Do not let other chemicals contaminate the working fluid, otherwise it may affect the use effect of the product;
- Regularly skimming off the floating dirt on the surface of the cutting fluid and adding new fluid can help extend the service life of the working fluid and ensure the processing effect;
- When replenishing new working fluid, the water and original solution must be fully stirred evenly before adding to the water tank;
- Regularly use a refractometer to detect the concentration of the working fluid. If the concentration becomes low, the concentration of the fluid must be appropriately increased before adding it to increase the concentration of the original working fluid;
- Do not add water or original solution directly into the working fluid to avoid uneven concentration of the working fluid and affect the overall effect of the working fluid;
- The specific usage concentration and frequency of adding new working fluid will vary according to the on-site usage environment. Users should make adjustments based on their own actual conditions.
Storage and packaging
Store in a cool and ventilated place, away from sunlight and rain;
The shelf life is 18 months at room temperature and stored as general chemicals;
15Kg/glue barrel.
Health and Environment
This product does not contain carcinogens such as nitrite and highly toxic substances such as phenols. Does not contain mineral oil, which is more conducive to environmental protection.
Other Information
For more information on environmental matters, health protection, fire protection matters, emergency protective measures, waste disposal and cargo transportation, please refer to the "Logistics Safety Data Sheet MSDS".
