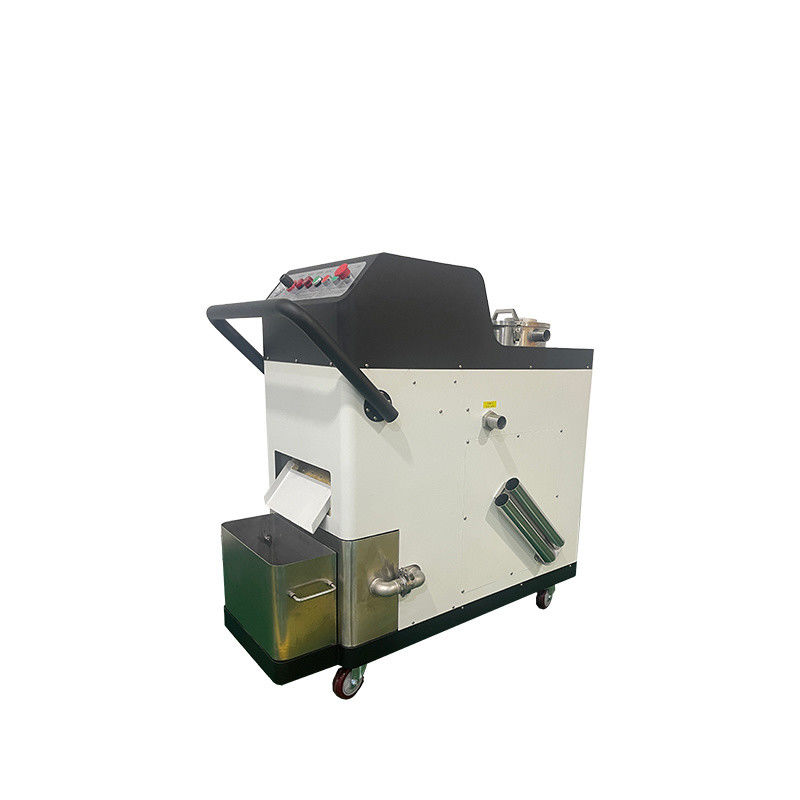

Grinding fluid purifier, three-stage separation, easy to operate
Product Details:
| Place of Origin: | China |
| Brand Name: | Diang Tianke |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Delivery Time: | 7-15 workdays |
| Payment Terms: | LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram |
| Supply Ability: | 300/month |
|
Detail Information |
|||
| Model NO.: | Datk-mxy | Extraction Tower Type: | Not Have |
|---|---|---|---|
| Pressure: | High Pressure | Equipment Weight: | 150kg |
| Working Voltage: | AC220V | Flow: | 6000L/H |
| Minimum Filtering Accuracy: | 20 Microns | Basket Capacity: | 14L |
| Transport Package: | Wooden Box | Specification: | 1100*600*1200mm |
| After-sales Service: | Life | Warranty: | One Year |
| Type: | Centrifuge | Object: | Cutting Fluid |
| Operating Type: | Continuous Type | Material: | Stainless Steel |
| Highlight: | Grinding fluid purifier |
||
Product Description
Grinding fluid purifier, three-stage separation, easy to operate
Product Introduction
Grinding fluid purifier is a device specifically designed to remove iron filings and impurities from grinding fluid. It restores the cleanliness of grinding fluid through a series of physical methods such as filtration, centrifugal separation, magnetic separation, etc., thereby extending its service life, reducing replacement frequency, lowering production costs, and improving the processing environment.
Equipment parameters:
1. Equipment dimensions: length 1100 * width 600 * height 1200mm
2. Processing flow rate: 6000 liters/hour
3. Filter basket capacity: 14 liters
4. Filtering accuracy: 20 microns
5. Working voltage: AC220V
6. Equipment power: 120W
7. Operating temperature: 0-50 ℃
Product features:
- Simple operation, intelligent control, may have one click start function;
- Easy to maintain, with no or minimal consumables;
- Energy saving and environmentally friendly, with low power consumption;
- Can improve the service life of grinding fluid, reduce waste liquid discharge, and alleviate the pressure of sewage treatment;
- Can achieve online purification without affecting normal production;
- High filtration accuracy, capable of separating small particles;
- Some equipment is equipped with universal wheels for easy movement.
Principle of three-stage separation technology:
Filtering: Using a filter basket or mesh device to directly filter out some coarse solid particles.
Centrifugal separation: Using the centrifugal force generated by high-speed rotation, tiny particles and impurities such as oil stains in the grinding fluid are separated.
Magnetic Separation: Utilizing a strong magnetic field to adsorb and separate ferromagnetic impurities, such as iron filings and metal particles, from grinding fluid. When the grinding fluid flows through the magnetic drum, impurities are magnetized and closely adhere to the surface of the drum. After rotating to the liquid free zone with the drum, they are scraped off and collected, thus achieving the purification and recycling of the grinding fluid.
