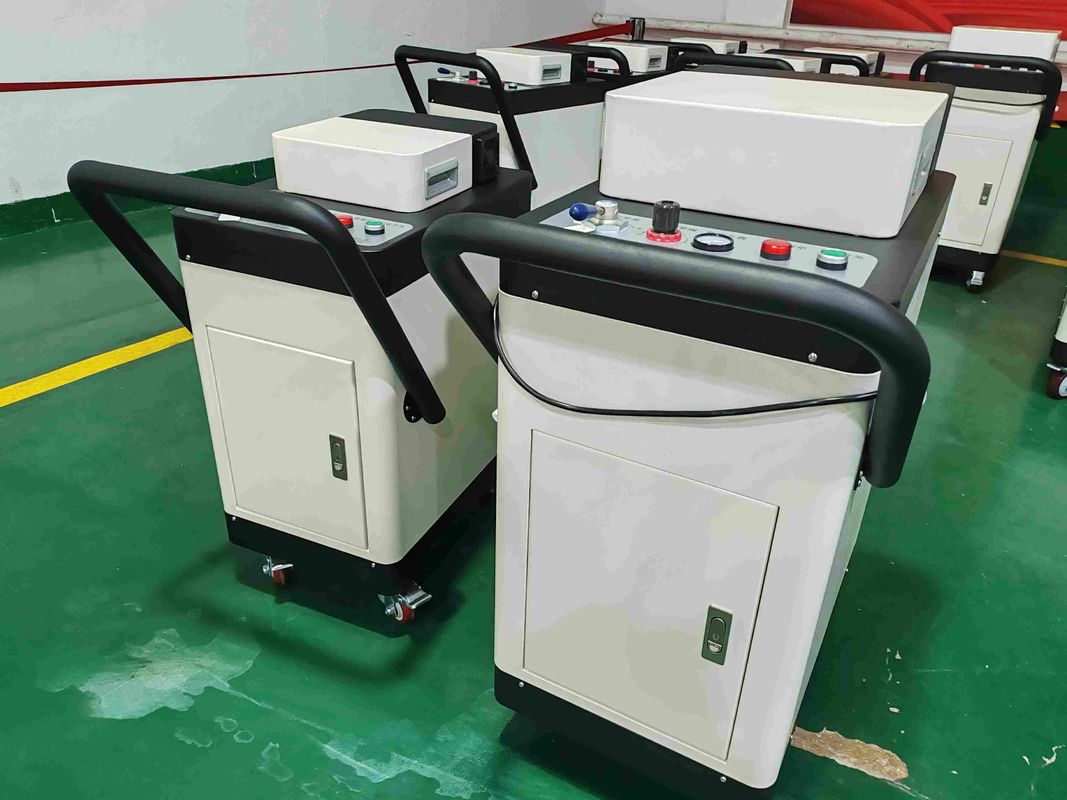

CNC oil skimmer, removes floating oil, ozone sterilization
Product Details:
| Place of Origin: | China |
| Brand Name: | Diang Tianke |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Price: | Negotiable |
|---|---|
| Delivery Time: | 7-15 workdays |
| Payment Terms: | LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram |
|
Detail Information |
|||
| Centrifuge Type: | Disc Centrifuge | Distillation Equipment Type: | Steam Distillation Equipment |
|---|---|---|---|
| Extraction Tower Type: | Vibration Plate Tower | Pressure: | High Pressure |
| Condition: | New | Weight: | 49kg |
| Size: | 650*400*800mm | Voltage: | 220V |
| Power: | 150W | Ozone Value: | 500mg/M3 |
| Processing Capacity: | 1000-3000L/H (Adjustable) | Transport Package: | Wooden Case |
| Specification: | Wooden Box Size750*450*900mm | Trademark: | Datk |
| Origin: | China | After-sales Service: | Life |
| Warranty: | One Year | Type: | Separating Plant |
| Separation Mode: | Filter Type | Operating Type: | Continuous Type |
| Installation: | Vertical | ||
| Highlight: | Ozone Sterilization CNC Oil Skimmer,Floating Oil CNC Oil Skimmer,floating oil skimmer |
||
Product Description
CNC oil skimmer, removes floating oil, ozone sterilization
Product Introduction
The oil-water separator is a cutting fluid oil-water separator that integrates oil removal, impurity removal, and deodorization. Three stage separation, efficient operation of imported skim oil steel strip, visible separation effect, oil-water separation rate up to 98%. The oil-water separator is equipped with a nano aeration sterilization device, which can kill anaerobic bacteria in the cutting fluid and effectively prevent the cutting fluid from smelling and deteriorating. Cutting fluid oil-water separation makes the cutting fluid cleaner and has a longer service life.
working principle
Cutting fluid oil-water separators usually use physical separation methods, and their working principle is based on the density difference between oil and water. This device separates oil droplets from cutting fluid from water through centrifugal force, gravity, filtration, and other methods.
Product Functions:
1. Fast oil-water separation, effectively removing floating oil, mold and particulate matter on the surface of cutting fluid;
2. By using the explosive sterilization device inside the machine, a large number of organic bacteria such as anaerobic bacteria that grow in the mixed liquid can be effectively killed, avoiding the cutting fluid from becoming smelly, extending the service life of the cutting fluid, reducing tool wear, and improving the working environment in the workshop;
3. Significantly reducing the frequency of cutting fluid replacement not only lowers the purchase cost of cutting fluid, but also reduces the environmental cost of treating waste liquid.
4. The device is energy-saving, easy to operate, one click start, easy to maintain, safe and reliable, and meets national equipment safety standards.
Equipment parameters
| Processing capacity | 1000-3000L/H (adjustable) |
| Ozone value | 500mg/m3 |
| Floating oil removal rate | Over 98% |
| Voltage | 220V |
| Power | 150W |
| External dimensions | 620 * 420 * 850mm |
| Applicable object | water-based cutting fluid equipment |
| Weight | :49kg |
| Filtering accuracy: | 0.3mm (customizable) |
| Ozone value: | 100-150mg/H |
| Floating oil removal rate: | 98% or above |
matters needing attention:
1. Before use, be sure to carefully read the device's user manual to understand its performance and operating requirements.
2. Choose the appropriate oil-water separator model based on the specific situation of the oil-water mixture.
3. Regularly maintain the equipment, such as checking for loose parts and cleaning the filter screen.
4. Avoid pouring corrosive substances such as strong acids and alkalis into the equipment to prevent damage to the machine.
5. Pay attention to the operating environment of the equipment and avoid adverse conditions such as high temperature and humidity that may affect it.
When the equipment malfunctions, it should be stopped in a timely manner and professional personnel should be contacted for maintenance.
7. Strictly follow the operating procedures to ensure safe use.
(Before purification)
(After purification)
