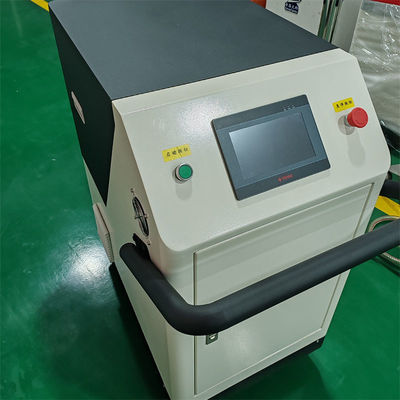

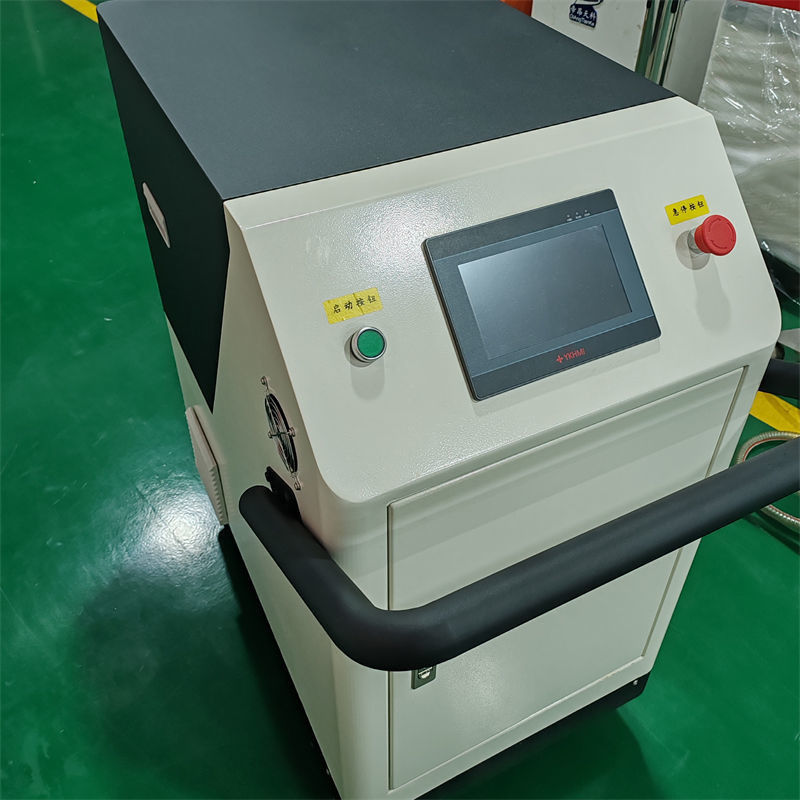

Extended Cutting Fluid Life CNC Coolant Oil Separator with 99.5% Oil Removal Rate
Product Details:
| Place of Origin: | China |
| Brand Name: | Diang Tianke |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Delivery Time: | 7-15 workdays |
| Payment Terms: | LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram |
|
Detail Information |
|||
| Centrifuge Type: | Disc Centrifuge | Distillation Equipment Type: | Steam Distillation Equipment |
|---|---|---|---|
| Extraction Tower Type: | Vibration Plate Tower | Pressure: | High Pressure |
| Condition: | New | Weight: | 150kg |
| Size: | 970*580*992mm | Voltage: | 220V |
| Power: | 1000W | Ozone Value: | 100-150mg/M3 |
| Processing Capacity: | 500L/H | Transport Package: | Wooden Case |
| Specification: | Wooden Box Size1100*650*1100mm | Trademark: | Datk |
| Origin: | China | After-sales Service: | Life |
| Warranty: | One Year | Type: | Separating Plant |
| Separation Mode: | Filter Type | Operating Type: | Continuous Type |
| Installation: | Vertical | ||
| Highlight: | 99.5% CNC Coolant Oil Separator,CNC Coolant Oil Separator |
||
Product Description
Extended Cutting Fluid Life CNC Coolant Oil Separator with 99.5% Oil Removal Rate
Product Introduction:
High speed centrifugal purifier can achieve pure physical high-precision oil liquid powder three-phase separation under high-speed centrifugal action, without using any chemical additives. It efficiently removes micron sized particles, bacteria, and floating oil without breaking the emulsion, with an oil removal rate of up to 99.5%.
Equipment functions
1. Oil removal, deodorization, powder removal, high cleanliness purification;
2. Stable, convenient and mobile, one machine can manage one workshop;
3. Efficient oil and powder removal, floating oil removal rate can reach 99.5%, and powder filtration accuracy can reach 2 microns; Greatly extend the service life of cutting fluid;
4. The removal rate of mold can reach 95%, effectively disrupting the growth of mold in the food chain. Mold is separated and adhered to the drum wall, ensuring the cleanliness of cutting fluid, reducing mechanical component wear, and improving workpiece processing accuracy;
5. Some micrometer sized oxidized metals, dissolved oil droplets, and mold are acidic substances. After separation, the alkalinity of the cutting fluid can be effectively maintained, eliminating the odor and allergens of the cutting fluid and improving the working environment in the workshop;
6. Micro sized metal particles are effectively separated, and the conductivity of the cutting fluid decreases
Technical features:
1. Strong pollutant absorption capacity and high retention rate: It can be started with water and slag, and can clean 5-6 CNC machines at once. It has strong pollutant absorption capacity and high retention rate, which is difficult to achieve with similar products;
2. The advantage of anti vibration level is obvious: the advantage of anti vibration level is obvious, with a true positioning accuracy of 100 milligrams and a repeated positioning accuracy of 200 milligrams, which is difficult to achieve for similar products;
3. Equipped with shock-absorbing mechanism: The electric spindle is a floating spindle with shock-absorbing mechanism, which is difficult for similar products to achieve;
4. Constant pressure separation: automatic back pressure regulation, constant pressure separation;
5. Oil tank level alarm system: PLC and frequency conversion control, equipped with an oil tank level alarm system;
Company Profile
Guangzhou Di'ang Tianke Automation Equipment Co., Ltd. is committed to helping customers in the metal processing field solve a series of pollution problems caused by the use of chemical oils in the workshop. By using our company's technology and equipment, we can help customers reduce the generation of "wastewater, exhaust gas, and waste residue" from the source, improve the extensive management of workshops, reduce the cost of end of pipe treatment for enterprises, and enable workshops to easily implement clean production at low cost, achieving the goal of "energy conservation, consumption reduction, pollution reduction, and efficiency enhancement".
