Machine tool liquid filling equipment, battery driven, flexible movement
Product Details:
| Place of Origin: | China |
| Brand Name: | Diang Tianke |
| Certification: | ISO9001 |
| Model Number: | DATK-PYJ002 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pis |
|---|---|
| Price: | Negotiable |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 7-15 workdays |
| Payment Terms: | LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram |
| Supply Ability: | 1 |
|
Detail Information |
|||
| Features: | Flexible To Move And Easy To Add Liquid | Color: | White |
|---|---|---|---|
| Equipment Weight: | 152KG | Maximum Flow Rate: | 1500L/H |
| Working Voltage: | AC220V/DC24V | Origin: | Guangzhou |
| Application: | Filling Coolant For Machine Tools | Power: | Rechargeable Battery/alternating Current |
| Highlight: | Machine Tool Liquid Filling Equipment,Machine tool liquid filling equipment,battery driven liquid filling equipment |
||
Product Description

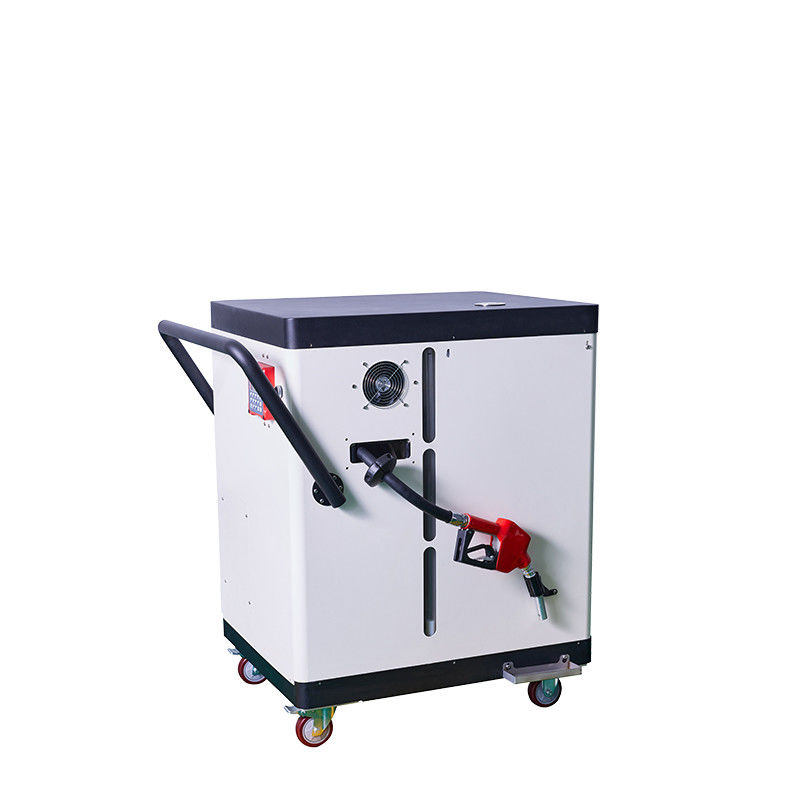

Machine tool liquid filling equipment, battery driven, flexible movement
Product Introduction
Mobile liquid dispenser is a widely used equipment in the field of mechanical processing. It is mainly used to quickly, accurately, and quantitatively add cutting fluid to machine tools to improve work efficiency and reduce waste.
| Equipment size | 928*580*1100mm(Dimensions) |
| Packaging wooden box size | 1200*800*1150mm(Dimensions) |
| Equipment weight | 152kg |
| working voltage | DC24V/220V |
| quantity of electricity | 23AH |
| Power | 500W |
| Outlet pipe | 6m |
| maximum flow | 1500L/h |
| Water tank capacity | 200L |
| Operating temperature | 0-40℃ |
Product performance:
1. Built in 200 liter liquid storage tank, capable of supplying liquid to multiple machine tools at once;
2. The device comes with a rechargeable battery drive, which can be used without the need for AC power, making it convenient and fast;
3. Install a high-precision flow control system that can set the amount of liquid added according to requirements;
4. Equipped with an intelligent pressure sensor and a liquid filling gun, the liquid filling can be controlled to start and stop immediately, making it easy to operate;
5. The liquid filling tube is equipped with an automatic collection function. After the liquid filling is completed, the liquid filling tube will automatically retract without occupying external space;
6. The rechargeable battery can be switched to an external regular 220V power supply even when it runs out of battery, which is flexible and convenient.
Company Profile
After years of market polishing, Di'ang Tianke has accumulated industry experience and received high praise from customers. Its main products include cutting fluid oil-water separators, slag cleaning and liquid changing machines, grinding fluid purifiers, intelligent liquid distribution stations, high-speed centrifuges, pure oil purifiers, waste liquid low-temperature evaporation equipment, and centralized liquid supply purification systems. Satisfy customers' various needs in machining and cleaning. At the same time, we can also provide customers with systematic cleaning, cleaning solutions, and related services.
