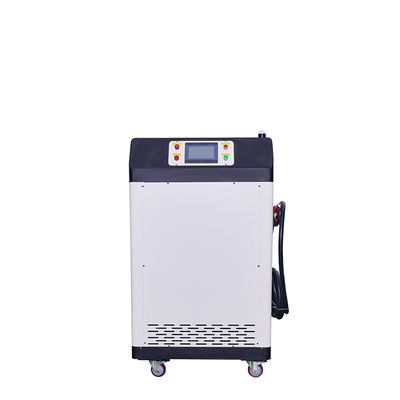

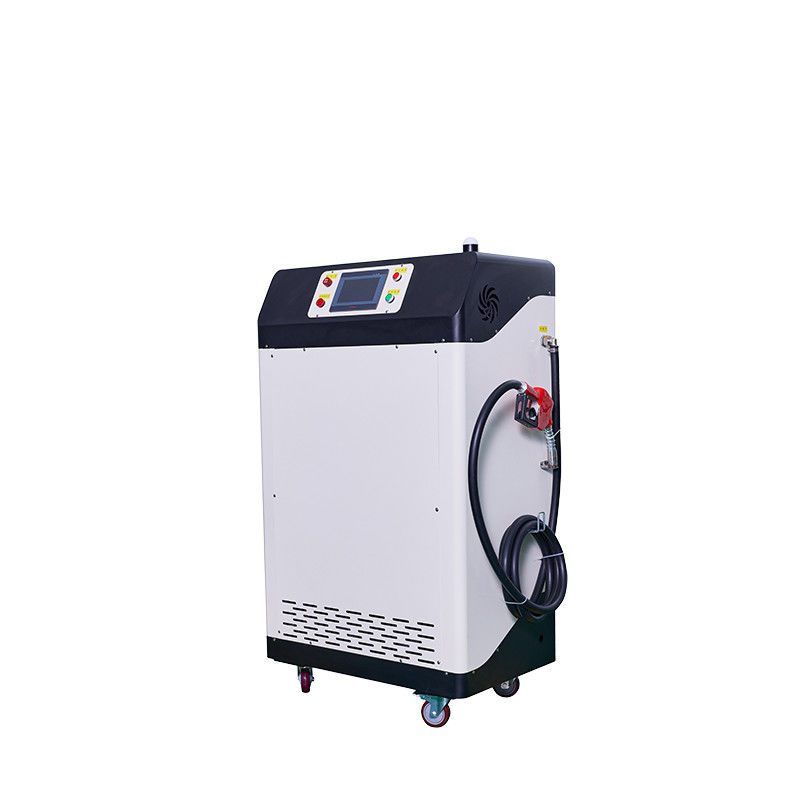

120L Cutting Fluid Dispensing Machine One Click Start Stop For Metalworking
Product Details:
| Place of Origin: | China |
| Brand Name: | Diang Tianke |
| Certification: | ISO9001 |
| Model Number: | DATK-JYC002 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pis |
|---|---|
| Price: | Negotiable |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 7-15 workdays |
| Payment Terms: | LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram |
| Supply Ability: | 1 |
|
Detail Information |
|||
| Application: | Metalworking | Capacity: | 120L |
|---|---|---|---|
| Color: | White | Dimensions: | 860 X 680 X 1750 Mm |
| Operating Temperature: | 0-40 Degrees Celsius | Suitable Fluids: | Cutting Fluids, |
| Weight: | 230KG | ||
| Highlight: | Cutting Fluid Dispensing Machine,120L Cutting Fluid Dispensing,Metalworking Fluid Dispensing Machine |
||
Product Description
Cutting fluid dispensing, one click start stop, stable dispensing, intelligent start stop
1.Equipment parameters
| Equipment parameters | |
| Product size | 860*680*1750mm |
| Packaging wooden box size | 1200*800*1850mm |
| Equipment weight | 230kg |
| working voltage | AC220V |
| Power | 1800W |
| compounding concentration | 0-100% |
| maximum flow | 1800L/h |
| Water tank capacity | 120L |
| Operating temperature | 0-40℃ |
2.performance
1. Accurate flow rate, high-precision flow meter ensures that the flow error is less than 0.5%;
2. Accurate mixing ratio, precise control of mixing concentration through precision flow meter;
3. Intelligent start stop, PLC program control, intelligent liquid dispensing;
4. Liquid shortage alarm, high-precision liquid level sensor, automatic alarm and shutdown after the mother liquor is used up;
5. Uniform mixing, mixing and stirring function, making the liquid mix more evenly.
6. Easy to operate, one click start function;
7. Convenient to use, connect to the workshop's regular air source, and use with 220V electricity;
8. Intelligent data storage, automatically saves the usage amount of each mixing solution and water, making it easy to trace data;
3.The intelligent cutting fluid dispensing machine is suitable for machining centers, CNC machine tools, and continuous
An intelligent liquid dispensing device for cutting fluids used in high-precision machining equipment such as machine tools. The user only needs to connect the raw liquid and clean water pipes to the device, and set the required concentration and liquid capacity in the mixing system to start automatic mixing. The system will mix the raw liquid and clean water according to the user's set parameters without manual intervention.
