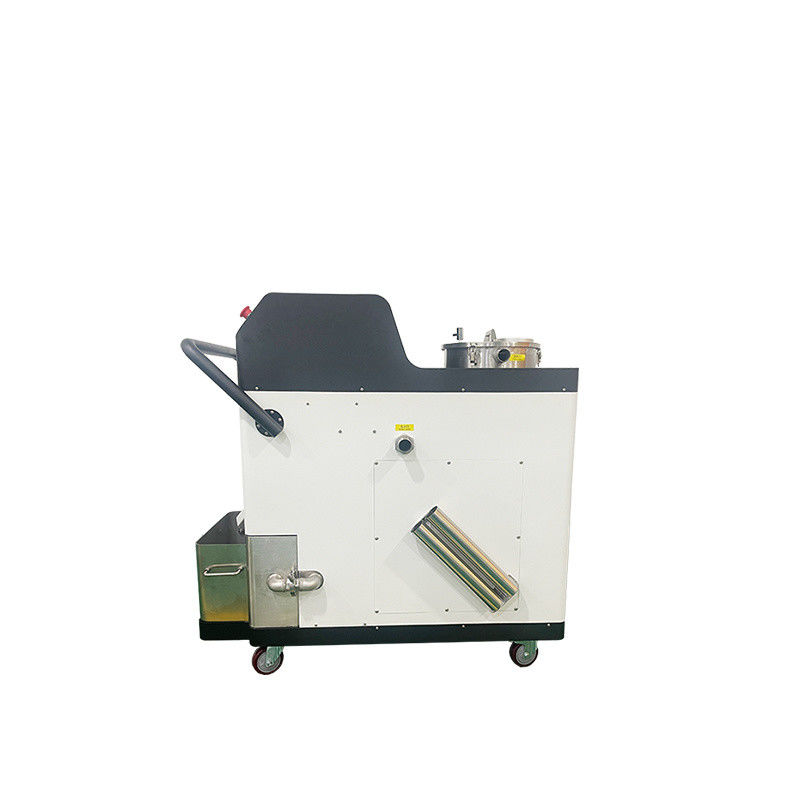

Grinding Fluid Filter, Three-Level Intelligent Separation, Automatic Slag Discharge
Product Details:
| Place of Origin: | China |
| Brand Name: | Diang Tianke |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Delivery Time: | 7-15 workdays |
| Payment Terms: | LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram |
| Supply Ability: | 300/month |
|
Detail Information |
|||
| Model NO.: | Datk-mxy | Extraction Tower Type: | Not Have |
|---|---|---|---|
| Pressure: | High Pressure | Equipment Weight: | 150kg |
| Working Voltage: | AC220V | Flow: | 6000L/H |
| Minimum Filtering Accuracy: | 20 Microns | Basket Capacity: | 14L |
| Transport Package: | Wooden Box | Specification: | 1100*600*1200mm |
| After-sales Service: | Life | Warranty: | One Year |
| Type: | Centrifuge | Object: | Cutting Fluid |
| Operating Type: | Continuous Type | Material: | Stainless Steel |
| Highlight: | Automatic Slag Discharge Grinding Fluid filter,Automatic Slag Discharge Grinding Fluid Filter |
||
Product Description
Grinding Fluid Filter, Three-Level Intelligent Separation, Automatic Slag Discharge
Company Profile
Di'angtianke is a one-stop intelligent purification equipment and solution provider for metal working fluids. The company has been continuously developing and improving new products according to market demand, helping machining enterprises solve problems such as cutting fluid use, maintenance, and waste liquid purification. The use of Di Ang Tian Ke's cutting fluid purification equipment can help enterprises extend the service life of cutting fluid, reduce operating costs, and improve production efficiency.
Product Description
Treatment method for grinding fluid purification machine:
1. The first level purification uses a filter basket for direct filtration, which can effectively filter out some coarser solid particles. The filter basket is made of non
Rust steel structure, easy to use and install, reusable, and consumables free;
2. The intelligent separation structure used for secondary purification can efficiently separate small particles in suspension, with a minimum particle size of 0.02mm. It adopts a special alloy material structure, which is pressure resistant, wear-resistant, and consumables free; And it can quickly extract metal powder and remove moisture, achieving rapid dry and wet separation of metal powder, separating relatively dry iron slag powder and automatically discharging it from the machine;
The grinding fluid purification machine adopts intelligent three-stage separation technology to quickly remove small particles suspended in the grinding fluid, with a separation rate of over 95%. It has intelligent control, one click start function, simple operation, convenient maintenance, no consumables, and works for less than 1 kWh in less than 1 hour, which is energy-saving and environmentally friendly.
Equipment parameters of grinding fluid purification machine:
1. Equipment dimensions: length 1100 * width 600 * height 1200mm
2. Processing flow rate: 6000 liters/hour
3. Filter basket capacity: 14 liters
4. Filtering accuracy: 20 microns
5. Working voltage: AC220V
6. Equipment power: 120W
7. Operating temperature: 0-50 ℃
The grinding fluid purification machine adopts intelligent three-stage separation technology to quickly remove small particles suspended in the grinding fluid, with a separation rate of over 95%. It has intelligent control, one click start function, simple operation, convenient maintenance, no consumables, and works for less than 1 kWh in less than 1 hour, which is energy-saving and environmentally friendly.
