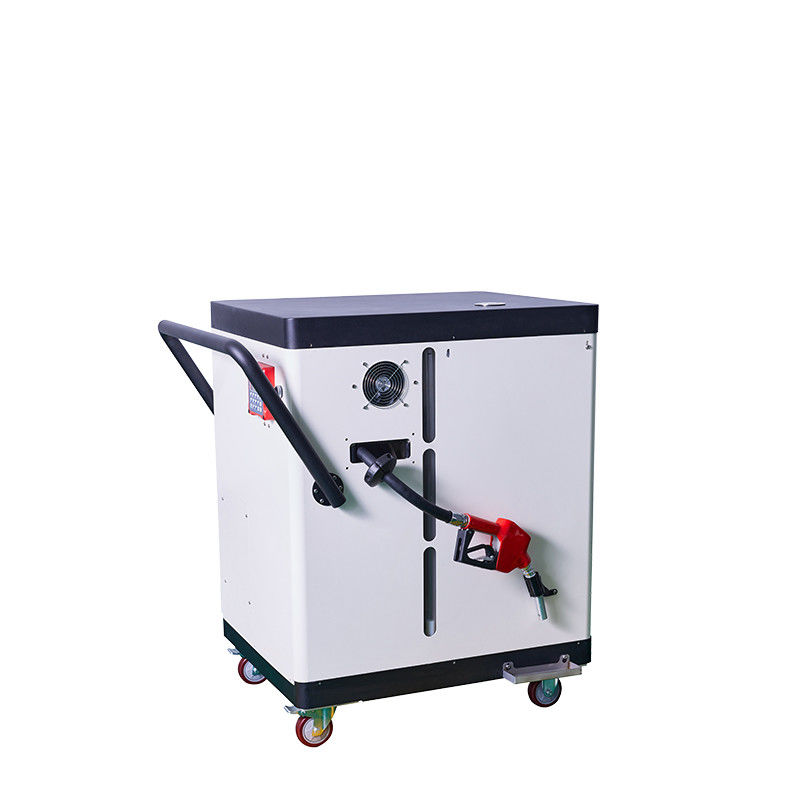

Cutting Fluid Mobile Filling Machine, Flexible To Move, Can Add Cutting Fluid To Multiple Machine At Once
Product Details:
| Place of Origin: | China |
| Brand Name: | Diang Tianke |
| Certification: | ISO9001 |
| Model Number: | DATK-PYJ002 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pis |
|---|---|
| Price: | Negotiable |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 7-15 workdays |
| Payment Terms: | LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram |
| Supply Ability: | 1 |
|
Detail Information |
|||
| Features: | Flexible To Move And Easy To Add Liquid | Color: | White |
|---|---|---|---|
| Equipment Weight: | 152KG | Maximum Flow Rate: | 1500L/H |
| Working Voltage: | AC220V/DC24V | Origin: | Guangzhou |
| Application: | Filling Coolant For Machine Tools | Power: | Rechargeable Battery/alternating Current |
| Highlight: | Multiple Mobile Filling Machine,Flexible Mobile Filling Machine |
||
Product Description
Cutting Fluid Mobile Filling Machine, Flexible To Move, Can Add Cutting Fluid To Multiple Machine At Once
Intelligent dispensing station=intelligent dispensing machine+mobile dispensing vehicle. The intelligent liquid dispenser adopts PLC control, with simple operation and precise liquid dispensing. It comes with a 120-liter storage tank, and the liquid can be automatically prepared and stored, making it convenient to use at any time and saving waiting time. Compared to traditional manual liquid preparation, it eliminates the steps of manual liquid extraction, water addition, metering, stirring, and concentration detection, achieving precise concentration ratio, intelligent start stop, automatic liquid replenishment, and fully automated control.
The mobile refueling truck also comes with a 200-liter storage tank, fully enclosed for mobile refueling, safe, convenient, and clean. It comes with a 10 meter long water pipe refueling gun, which saves time, effort, and worry when moving in the workshop for refueling. This device uses high-precision flow meters and achieves high-precision proportioning, intelligent start stop, liquid shortage alarm, one click start, intelligent data storage and other functions under the control of PLC, fully automated control.
Equipment parameters
| Equipment size | 928*580*1100mm(Dimensions) |
| Packaging wooden box size | 1200*800*1150mm(Dimensions) |
| Equipment weight | 152kg |
| working voltage | DC24V/220V |
| quantity of electricity | 23AH |
| Power | 500W |
| Outlet pipe | 6m |
| maximum flow | 1500L/h |
| Water tank capacity | 200L |
| Operating temperature | 0-40℃ |
The mobile cutting fluid dispenser:
1. Equipped with a built-in 200 liter liquid storage tank, it can supply multiple machine tools with liquid at once;
2. The device comes with a rechargeable battery driver, which can be used without the need for AC power, making it convenient and fast;
3. Install a high-precision flow control system, which can set the amount of liquid added according to needs;
4. Equipped with an intelligent pressure sensor and a liquid dispensing gun, the liquid dispensing can be controlled to start or stop, making it easy to operate;
5. The liquid filling tube is equipped with an automatic collection function. After the liquid is added, the liquid filling tube automatically retracts without taking up external space;
6. Rechargeable batteries can be switched to external conventional 220V power sources even when they run out of charge, making it flexible and convenient to use;
In summary, intelligent liquid dispensers have greatly improved the efficiency and accuracy of liquid mixing and configuration through features such as automation, high precision, multifunctionality, convenient operation, and data tracking, providing more convenient liquid processing solutions for various industries.
