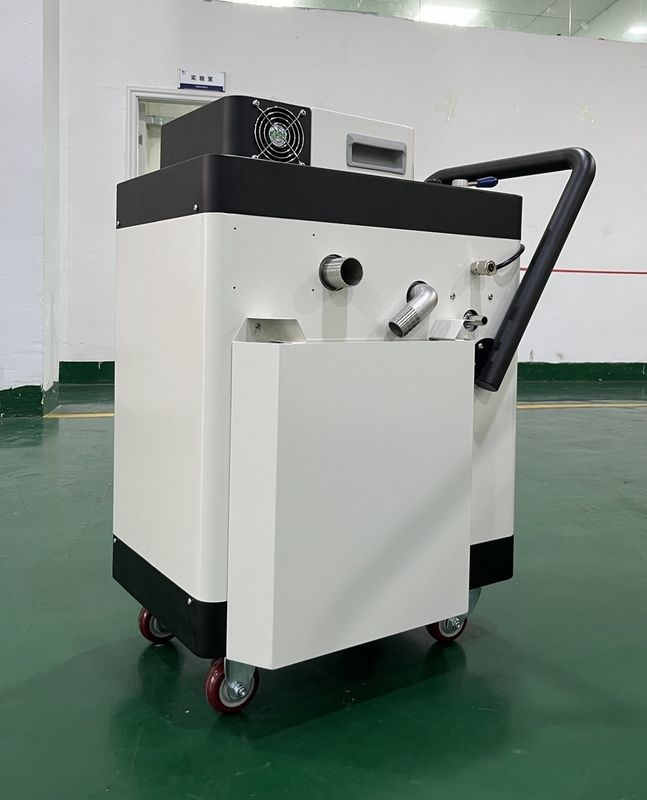

1000-3000L/H Processing Capacity CNC Machine Oil Skimmer For Cutting Fluid

Product Description

Product parameters
Attribute: A cutting fluid regeneration equipment with a purification rate of over 98%;
Usage: Oil removal, sterilization, and deodorization, improving the quality of cutting fluid;
Product name: Di'angtianke oil-water separator
Performance: Remove floating oil, sterilize and deodorize, and extend the service life of cutting fluid;
Features: Pure physical purification, no additional chemicals added, zero consumables;
Working mode: capable of 24-hour online cyclic processing without the need for shutdown;
Business model: OEM/customized;
Processing capacity: 1000-3000L/H (adjustable);
Ozone value: 100-150mg/h;
Floating oil removal rate: up to 98% or above;
Working voltage: AC220V;
Equipment power: 150W;
Equipment size: 650 * 400 * 800mm;
Packaging box size: 750 * 450 * 900mm;
Applicable object: water-based cutting fluid;
Weight: 49kg;
Pre processing filtration accuracy: 0.3mm (customizable).

Function:
1. Impurity filtration: filter out impurities such as iron powder and aluminum powder suspended on the surface of the cutting fluid to avoid recoil adhesion or scratching of the workpiece surface;
2. Oil water separation: Remove various impurities (guide rail oil, hydraulic oil, etc.) from the surface of the liquid tank to quickly achieve oil water separation;
3. Aeration sterilization: Through the aeration circulation function, various microorganisms in the cutting fluid can be effectively killed, and sterilization and deodorization can be achieved;
4. Water purification: do not change the liquid phase of the cutting fluid, and regularly replenish new liquid after purification to maintain concentration;
5. Reduce costs: significantly reduce the cost of replacing new liquids and waste liquid treatment;
6. Extending tool life: With better lubrication and rust prevention properties of cutting fluid, the machining accuracy of natural workpieces increases, and the service life of the tool also increases;
7. Improving workshop environment: reducing skin allergies among workers, reducing corrosiveness to machine tools, and improving workshop environment.




Notes:
Before use, be sure to carefully read the user manual of the device to understand its performance and operating requirements.
2. Choose the appropriate oil-water separator model based on the specific situation of the oil-water mixture.
3. Regularly maintain the equipment, such as checking for loose parts and cleaning the filter screen.
4. Avoid pouring corrosive substances such as strong acids and bases into the equipment to avoid damaging the machine.
5. Pay attention to the operating environment of the equipment and avoid adverse conditions such as high temperature and humidity from affecting it.
When the equipment malfunctions, it should be stopped in a timely manner and professional personnel should be contacted for maintenance.
7. Strictly follow the operating procedures to ensure safe use.
