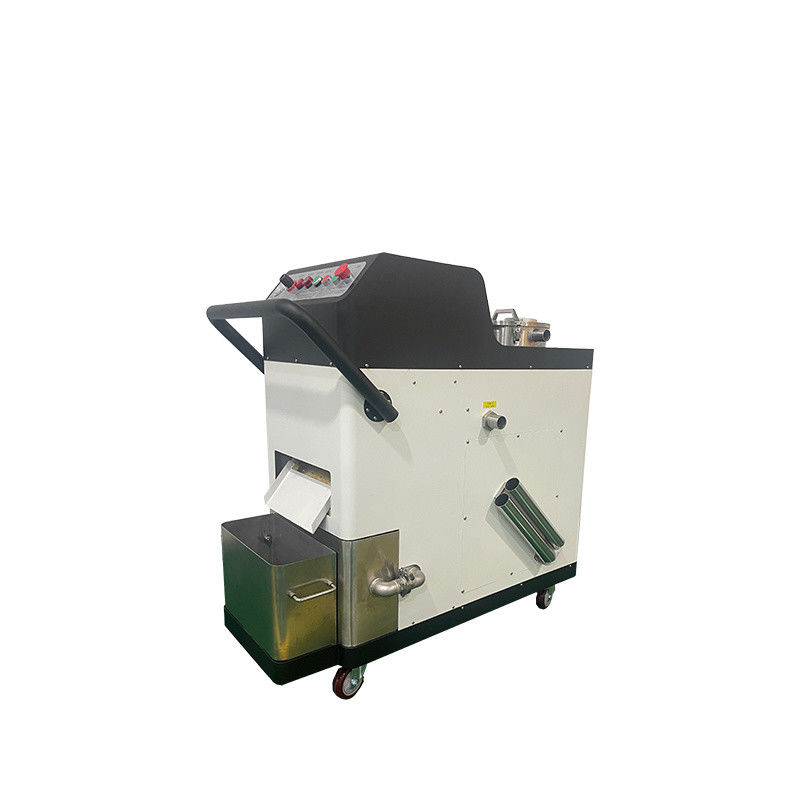

Grinding Fluid Purification System Improving Product Accuracy And Surface Smoothness
Product Details:
| Place of Origin: | China |
| Brand Name: | Diang Tianke |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Delivery Time: | 7-15 workdays |
| Payment Terms: | LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram |
| Supply Ability: | 300/month |
|
Detail Information |
|||
| Model NO.: | Datk-mxy | Extraction Tower Type: | Not Have |
|---|---|---|---|
| Pressure: | High Pressure | Equipment Weight: | 150kg |
| Working Voltage: | AC220V | Flow: | 6000L/H |
| Minimum Filtering Accuracy: | 20 Microns | Basket Capacity: | 14L |
| Transport Package: | Wooden Box | Specification: | 1100*600*1200mm |
| After-sales Service: | Life | Warranty: | One Year |
| Type: | Centrifuge | Object: | Cutting Fluid |
| Operating Type: | Continuous Type | Material: | Stainless Steel |
| Highlight: | Surface Smoothness Grinding Fluid Purification System,Grinding Fluid Purification System |
||
Product Description
Grinding Fluid Purification System Improving Product Accuracy and Surface Smoothness
Product development background
Due to the large amount of small particles generated by grinding processing mixed in the grinding fluid, natural clarification requires an extremely long time. Clarification is basically impossible to achieve in the process of machine tool grinding. The presence of these small particles directly leads to the grinding fluid gradually becoming turbid, affecting product accuracy, surface smoothness, accelerating tool wear, damaging the cooling pump, and even causing irreversible damage to machine tool accuracy. The grinding fluid purification machine effectively solves the above-mentioned problems, with intelligent three-stage separation, pre filtration, high-speed centrifugal separation structure, and intelligent separation structure. It can quickly separate small particles suspended in the grinding fluid, greatly improving the service life of the grinding fluid and greatly alleviating the environmental pressure of sewage treatment.
Product Description
Grinding fluid purifier is a purification equipment specifically designed for grinding machine iron powder filtration. It adopts intelligent three-stage separation, with a separation rate of over 95% and a separation particle size of up to 20 microns. It is pure physical purification and consumables free.
The main function of a grinding fluid purifier is to purify the grinding fluid used in industrial production for metal processing, such as cutting fluid, grinding fluid, cooling fluid, etc., to achieve a certain level of cleanliness, transparency, and stability, thereby improving the quality of processed products, extending the service life of grinding fluid, and reducing production costs. Its specific functions include:
1. Remove suspended particles and impurities from the grinding fluid to achieve a certain level of cleanliness;
2. Remove grease and dirt from the grinding fluid to achieve a certain level of transparency and stability;
3. Recycling and reusing waste grinding fluid to reduce environmental pollution and waste discharge.
Applicable scenarios
Metal processing fluids such as grinding fluid, grinding fluid, cutting fluid, emulsion, etc
Equipment parameters:
1. Equipment dimensions: length 1100 * width 600 * height 1200mm
2. Processing flow rate: 6000 liters/hour
3. Filter basket capacity: 14 liters
4. Filtering accuracy: 20 microns
5. Working voltage: AC220V
6. Equipment power: 120W
7. Operating temperature: 0-50 ℃
