Grinding Machine Coolant Filtration System For Sustainable And Eco-Friendly Operations
Product Details:
| Place of Origin: | China |
| Brand Name: | Diang Tianke |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Delivery Time: | 7-15 workdays |
| Payment Terms: | LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram |
| Supply Ability: | 300/month |
|
Detail Information |
|||
| Model NO.: | Datk-mxy | Extraction Tower Type: | Not Have |
|---|---|---|---|
| Pressure: | High Pressure | Equipment Weight: | 150kg |
| Working Voltage: | AC220V | Flow: | 6000L/H |
| Minimum Filtering Accuracy: | 20 Microns | Basket Capacity: | 14L |
| Transport Package: | Wooden Box | Specification: | 1100*600*1200mm |
| After-sales Service: | Life | Warranty: | One Year |
| Type: | Centrifuge | Object: | Cutting Fluid |
| Operating Type: | Continuous Type | Material: | Stainless Steel |
| Highlight: | Sustainable Grinding Machine Coolant Filtration System,6000L/H Grinding Machine Coolant Filtration System |
||
Product Description

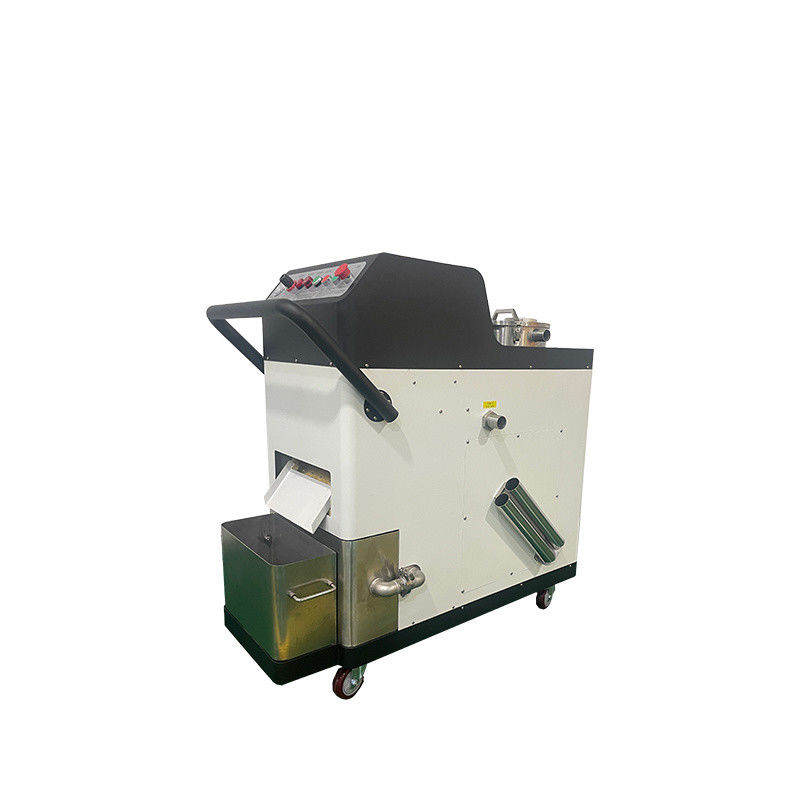

Grinding Machine Coolant Filtration System for Sustainable and Eco-Friendly Operations
Product Description
Grinding fluid purifier is a purification equipment specifically designed for grinding machine iron powder filtration. It adopts intelligent three-stage separation, with a separation rate of over 95% and a separation particle size of up to 20 microns. It is pure physical purification and consumables free.
The main function of a grinding fluid purifier is to purify the grinding fluid used in industrial production for metal processing, such as cutting fluid, grinding fluid, cooling fluid, etc., to achieve a certain level of cleanliness, transparency, and stability, thereby improving the quality of processed products, extending the service life of grinding fluid, and reducing production costs. Its specific functions include:
1. Remove suspended particles and impurities from the grinding fluid to achieve a certain level of cleanliness;
2. Remove grease and dirt from the grinding fluid to achieve a certain level of transparency and stability;
3. Recycling and reusing waste grinding fluid to reduce environmental pollution and waste discharge.
Applicable scenarios: Metal working fluids such as grinding fluid, grinding fluid, cutting fluid, emulsion, etc
Equipment parameters:
1. Equipment dimensions: length 1100 * width 600 * height 1200mm
2. Processing flow rate: 6000 liters/hour
3. Filter basket capacity: 14 liters
4. Filtering accuracy: 20 microns
5. Working voltage: AC220V
6. Equipment power: 120W
7. Operating temperature: 0-50 ℃
Company strength:
1, Striving for excellence and putting service first: exploring the application field of cutting fluid and continuously creating value for customers;
2, Strong R&D capabilities: With over 10 years of industry experience, we provide technical support and services to customers, as well as machining solutions and technical support;
3, Strict quality management system: All of our products accept customized services, with the goal of providing customers with high-quality products;
4, Perfect after-sales service: sufficient production capacity, guaranteed delivery time, perfect supervision ability, and guaranteed quality.
