Zero Consumables CNC Machine Oil Skimmer For Cutting Fluid Purification
Product Details:
| Place of Origin: | China |
| Brand Name: | Diang Tianke |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 7-15 workdays |
| Payment Terms: | LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram |
| Supply Ability: | 300/month |
|
Detail Information |
|||
| Model NO.: | Datk-qz | Installation: | Horizontal |
|---|---|---|---|
| Centrifuge Type: | Horizontal Spiral Centrifuge | Distillation Equipment Type: | Steam Distillation Equipment |
| Extraction Tower Type: | Vibration Plate Tower | Pressure: | High Pressure |
| Condition: | New | Weight: | 78kg |
| Processing Capacity: | 8000L | Working Air Pressure: | 0.4-0.6MPa |
| Air Consumption: | 0.6m³/Min Max | Filtration: | 0.75mm |
| Transport Package: | Wooden Case | Specification: | 850*450*900mm |
| Trademark: | Datk | Origin: | China |
| HS Code: | 8401200000 | Supply Ability: | 5000 Units/Year |
| After-sales Service: | Life | Warranty: | One Year |
| Type: | Centrifuge | Object: | Cosmetic |
| Separation Mode: | Filter Type | Operating Type: | Continuous Type |
| Highlight: | Zero Consumables CNC Machine Oil Skimmer,CNC Machine Oil Skimmer |
||
Product Description

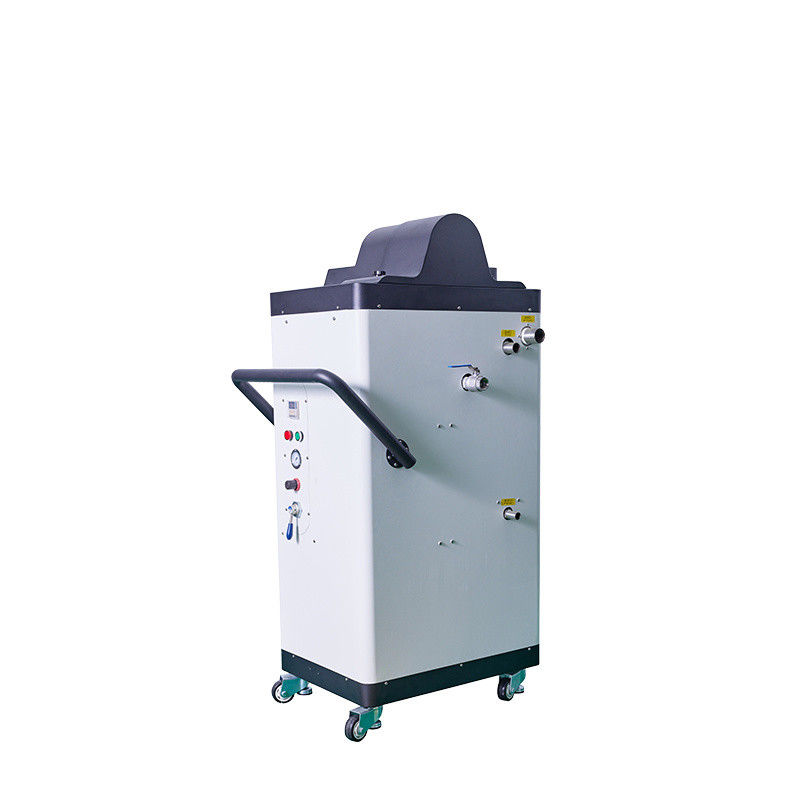

Zero Consumables CNC Machine Oil Skimmer for Cutting Fluid Purification
Product Introduction
A cutting fluid oil-water separator is a device specifically designed to effectively separate oil and water from cutting fluid. In the process of mechanical machining, cutting fluid often mixes with a large amount of oil stains, which not only affects the performance and service life of cutting fluid, but also may have adverse effects on machining quality and equipment. The emergence of cutting fluid oil-water separators is precisely to solve this problem.
Product parameters:
Attribute: A cutting fluid regeneration equipment with a purification rate of over 98%;
Usage: Oil removal, sterilization, and deodorization, improving the quality of cutting fluid;
Product name: Di'angtianke oil-water separator
Performance: Remove floating oil, sterilize and deodorize, and extend the service life of cutting fluid;
Features: Pure physical purification, no additional chemicals added, zero consumables;
Working mode: capable of 24-hour online cyclic processing without the need for shutdown;
Business model: OEM/customized;
Processing capacity: 1000-3000L/H (adjustable);
Ozone value: 100-150mg/h;
Floating oil removal rate: up to 98% or above;
Working voltage: AC220V;
Equipment power: 150W;
Equipment size: 650 * 400 * 800mm;
Packaging box size: 750 * 450 * 900mm;
Applicable object: water-based cutting fluid;
Weight: 49kg;
Pre processing filtration accuracy: 0.3mm (customizable)
Function:
1. Impurity filtration: filter out impurities such as iron powder and aluminum powder suspended on the surface of the cutting fluid to avoid recoil adhesion or scratching of the workpiece surface;
2. Oil water separation: Remove various impurities (guide rail oil, hydraulic oil, etc.) from the surface of the liquid tank to quickly achieve oil water separation;
3. Aeration sterilization: Through the aeration circulation function, various microorganisms in the cutting fluid can be effectively killed, and sterilization and deodorization can be achieved;
4. Water purification: do not change the liquid phase of the cutting fluid, and regularly replenish new liquid after purification to maintain concentration;
5. Reduce costs: significantly reduce the cost of replacing new liquids and waste liquid treatment;
6. Extending tool life: With better lubrication and rust prevention properties of cutting fluid, the machining accuracy of natural workpieces increases, and the service life of the tool also increases;
7. Improving workshop environment: reducing skin allergies among workers, reducing corrosiveness to machine tools, and improving workshop environment.
Company Profile
Guangzhou Di'ang Tianke is an enterprise specializing in one-stop intelligent purification solutions for metalworking fluids. Our company is committed to providing standardized and professional services to customers, ensuring green closed-loop management of metalworking fluids from liquid preparation, supply, online purification to waste liquid recycling, and helping machining enterprises reduce costs and increase efficiency.
