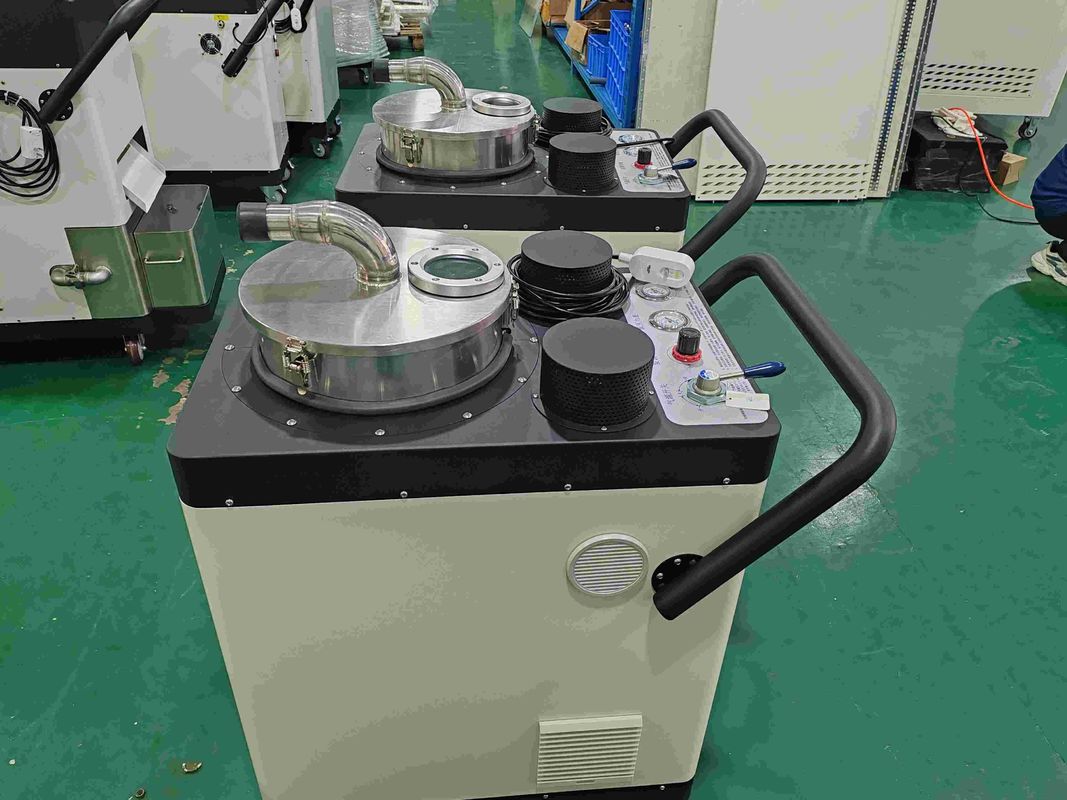

AC220V Machine Tool Slag Remover Slag Cleaning And Fluid Replacement Dry Chip Iron Filings
Product Details:
| Place of Origin: | China |
| Brand Name: | Diang Tianke |
Payment & Shipping Terms:
| Price: | Negotiable |
|---|---|
| Delivery Time: | 7-15 workdays |
| Payment Terms: | LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram |
|
Detail Information |
|||
| Installation: | Not Have | Centrifuge Type: | Not Have |
|---|---|---|---|
| Distillation Equipment Type: | Not Have | Extraction Tower Type: | Not Have |
| Pressure: | High Pressure | Condition: | New |
| Equipment Weight: | 108kg | Working Air Pressure: | 0.2-0.5MPa |
| Working Voltage: | AC220V | Flow: | 8000L/H |
| Transport Package: | Wooden Box | Specification: | 790*530*1000mm |
| Trademark: | Datk | Origin: | China |
| After-sales Service: | Life | Warranty: | One Year |
| Type: | Centrifuge | Object: | Cutting Fluid |
| Separation Mode: | Filter Type | Operating Type: | Continuous Type |
| Highlight: | AC220V Machine Tool Slag Remover,Iron Machine Tool Slag Remover |
||
Product Description
Machine tool slag remover, slag cleaning and fluid replacement, dry chip iron filings
Equipment parameters
| Product size | 790 * 530 * 1000mm | Packaging wooden box size | 950 * 650 * 1100mm |
| Equipment weight: about | 108kg | Inlet diameter | 38mm |
| Outlet diameter | 45mm | Inlet diameter | 10mm |
| Working pressure | 0.2-0.5Mpa | Working voltage/power | 220V/3kw |
| Filtering accuracy | 0.75mm (customizable) | Wet extraction flow rate | 7000-8000L/H |
| Maximum dry suction force | -0.04MPa |
Principle of dry suction function of liquid tank cleaning machine:
The structure of the liquid tank cleaning machine with dry suction function is equipped with multiple detachable heads, filtration systems, vacuum buckets, and vacuum hoses. Turn on the power, the vacuum pump rotates, and the air inside the device is drawn out, generating pressure. Due to the pressure difference, the suction port of the machine body will have airflow flowing into the bucket, while also bringing in garbage. After being filtered by the system, the garbage is left in the vacuum cleaner and the clean liquid is discharged.
main features
Simple structure and fast cleaning speed: The liquid tank cleaning machine has a compact design, high cleaning efficiency, and can quickly complete the pumping and cleaning of a large amount of cutting fluid.
Easy to maintain: This device has low maintenance costs and can operate stably for a long time, reducing the maintenance burden on enterprises.
Efficient filtration: Adopting a multi-stage filtration device, it can filter out metal cutting and other impurities in the cutting fluid while pumping, achieving solid-liquid separation.
Multifunctional: It can not only be used for purifying cutting fluids and cleaning oil sludge and debris in storage tanks, but also as a cleaning equipment for liquid fluids such as water and oil splashed out in machining workshops.
Energy saving and environmental protection: By purifying and treating emulsions online, recycled water can be recycled and reused, reducing the total amount of emulsion emissions, lowering enterprise emission costs, and saving freshwater resources.
Our strength:
1, Striving for excellence and putting service first: exploring the application field of cutting fluid and continuously creating value for customers;
2, Strong research and development capabilities: With over 10 years of experience in the industry, we provide technical support and services to customers, offering machining solutions and technical support;
3, Strict quality management system: All of our products accept customized services with the goal of providing customers with high-quality products;
4, Perfect after-sales service: sufficient production capacity, guaranteed delivery time, perfect supervision ability, and guaranteed quality.
