Precision filtration and cleaning equipment used in the mechanical processing industry
Product Details:
| Place of Origin: | China |
| Brand Name: | Diang Tianke |
Payment & Shipping Terms:
| Price: | Negotiable |
|---|---|
| Delivery Time: | 7-15 workdays |
| Payment Terms: | LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram |
|
Detail Information |
|||
| Installation: | Not Have | Centrifuge Type: | Not Have |
|---|---|---|---|
| Distillation Equipment Type: | Not Have | Extraction Tower Type: | Not Have |
| Pressure: | High Pressure | Condition: | New |
| Equipment Weight: | 108kg | Working Air Pressure: | 0.2-0.5MPa |
| Working Voltage: | AC220V | Flow: | 8000L/H |
| Transport Package: | Wooden Box | Specification: | 790*530*1000mm |
| Trademark: | Datk | Origin: | China |
| After-sales Service: | Life | Warranty: | One Year |
| Type: | Centrifuge | Object: | Cutting Fluid |
| Separation Mode: | Filter Type | Operating Type: | Continuous Type |
| Highlight: | Mechanical Processing Industry Precision Filtration,Precision Filtration Cleaning Equipment,Mechanical Processing Industry Cleaning Equipment |
||
Product Description

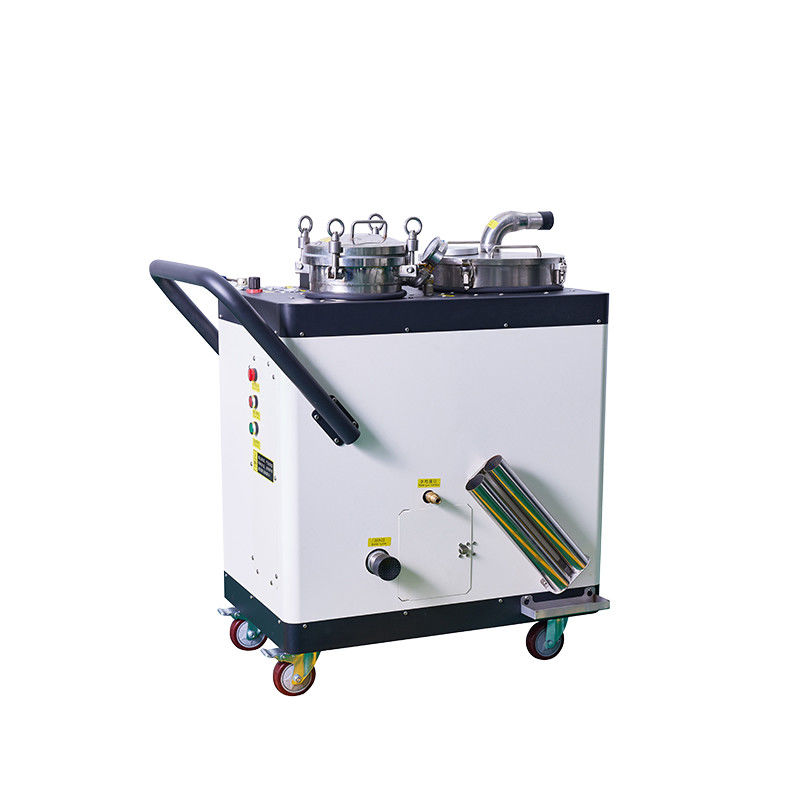

Precision filtration and cleaning equipment used in the mechanical processing industry
Product Introduction
Precision filtration and cleaning equipment is a multifunctional cleaning vehicle that integrates functions such as slag cleaning and liquid exchange, wet dry dual-use cleaning, precision filtration, and high-pressure cleaning. It can meet the overall cleaning needs of workshops and machine tools, and can clean dirt such as workshop floors, machine surfaces, water tank oil sludge, and debris. High precision filtration of cutting fluid makes it cleaner and has a longer service life. Wide applicability, convenient and fast, zero consumables, safe and worry free!
Equipment parameters
Equipment size: 1200 * 650 * 1150mm
Packaging box size:
Equipment weight: 168kg
Working pressure: 0.2-0.5MPa
Working voltage: AC220V
Equipment power: 3000W
First level filtration accuracy: 0.5mm
Secondary filtration accuracy: 0.2mm (customizable)
Wet extraction flow rate: 7000-8000L/h
Maximum dry suction force: -0.02MPa
Water gun flushing pressure: 0.4MPa
Application scope:
The precision filtration cleaning machine has a wide range of applications, from routine cleaning work to cutting fluid slag removal and replacement, high-pressure flushing function, all of which reflect its professional quality. Vacuum cleaning, iron chip suction, slag removal, and other functions can be completed in one go, and can be used in conjunction with a series of equipment such as machine tools. The equipment is designed for dust cleaning, with obvious effects, strong suction, long-lasting non-stop operation, easy cleaning, and no consumables.
Product Features
1. Online slag cleaning and liquid exchange function (pneumatic mode)
- Adopting a two-stage precision filtration mode, the first stage filtration accuracy comes standard with 0.5mm, and the second stage filtration accuracy is 0.2mm (customizable)
- Online slag cleaning and liquid exchange mode, used for cleaning metal debris, oil sludge and other impurities in the water tank.
- No need for electricity, connect to regular compressed air, and when the air pressure reaches 0.2-0.5MPa, it can be used normally.
2. Dry suction function (electric mode)
Used for cleaning oil sludge and impurities from floors, machine surfaces, and water tanks. Strong suction can effectively clean surface debris and water stains.
3. High pressure cleaning function (electrical dual core mode)
Pump the liquid into the equipment, increase the pressure inside the equipment, and use a cleaning water gun to clean the machine tool, workshop floor, water tank, etc.
Company Profile
Since its establishment, Guangzhou Di'ang Tianke Automation Equipment Co., Ltd. has been committed to solving the problem of "waste liquid and residue" caused by industrial processes for customers in the field of metal processing. The company has a highly skilled and professional R&D team, dedicated to providing environmentally friendly purification products to domestic and foreign customers. The company provides personalized services and offers solutions based on the on-site processing volume of customers.
