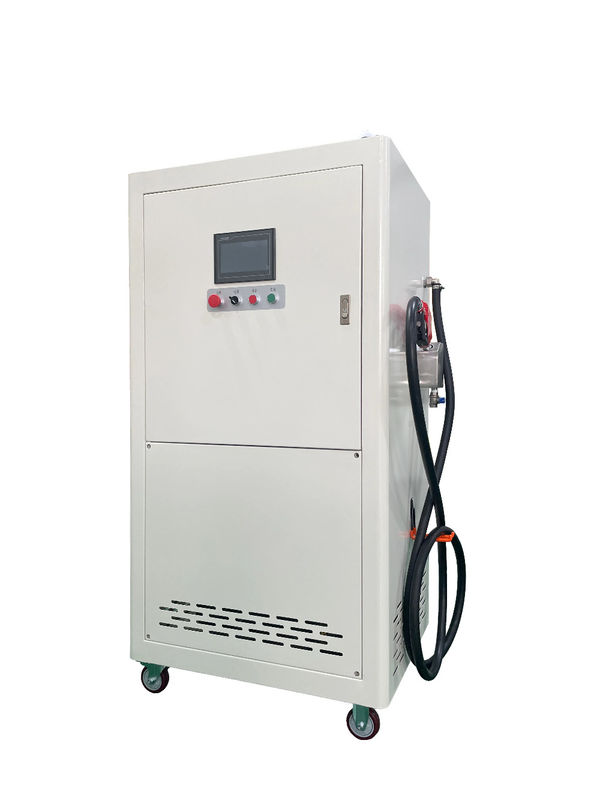

Cutting Fluid Intelligent Dispensing Machine High Pressure

Product Introduction

Intelligent liquid dispenser: A cutting fluid intelligent liquid dispenser is an intelligent liquid dispensing device suitable for high-precision machining equipment such as machining centers, CNC machine tools, and integrated machine tools. The user only needs to connect the raw liquid and clean water pipes to the device, and set the required concentration and liquid capacity in the mixing system to start automatic mixing. The system will mix the raw liquid and clean water according to the user's set parameters without manual intervention.

Applicable scenarios

Intelligent proportioning of metalworking fluids such as metalworking fluids, cleaning agents, grinding fluids, degreasing fluids, rolling fluids, saponification fluids, cooling fluids, etc.

Intelligent liquid dispenser equipment parameters:

1. Equipment size: 950 * 600 * 1580mm;

2. Processing flow rate: 1000 liters/hour;

3. Water tank capacity: 120 liters;

4. Concentration range: 0-50%;

5. Working pressure: 0.2-0.6 MPa;

6. Working voltage: AC220V;

7. Equipment power: 1800W;

8. Operating temperature: 0-50 ℃.

Main functions and features
1. Intelligent proportioning: The cutting fluid intelligent proportioning machine adopts PLC control, which can automatically add the corresponding raw liquid and tap water in a quantitative manner according to the preset concentration value, achieving precise concentration proportioning. This function not only improves the accuracy of the ratio, but also reduces errors caused by improper human operation.
2. Automatic fluid replenishment: The device has a built-in fluid storage tank that can store well proportioned cutting fluid and automatically replenish it when needed, ensuring a continuous supply of cutting fluid. This feature saves waiting time and improves production efficiency.
3. Liquid shortage alarm: The high-precision liquid level sensor can monitor the liquid level of the storage tank in real time. When the liquid level is too low, it will automatically alarm and shut down to prevent production from being affected by liquid shortage.
4. Uniform mixing: The equipment is equipped with a unique mixing and stirring function, which makes the liquid mixture more uniform and ensures the stable performance of the cutting fluid.
5. Data storage: The intelligent dispensing machine can automatically save the usage data of the original solution and water for each dispensing, generate usage curves, and facilitate traceability and coordination.
6. Easy to operate: The device usually adopts a one click start function, which is easy to operate and reduces the skill requirements for operators.
7. Strong applicability: The intelligent cutting fluid dispensing machine is suitable for various machining equipment, such as CNC machining centers, CNC lathes, CNC molds, etc., and can meet the production needs of different industries.

Company strength:
1, Striving for excellence and putting service first: exploring the application field of cutting fluid and continuously creating value for customers;
2, Strong R&D capabilities: With over 10 years of industry experience, we provide technical support and services to customers, as well as machining solutions and technical support;
3, Strict quality management system: All of our products accept customized services, with the goal of providing customers with high-quality products;
4, Perfect after-sales service: sufficient production capacity, guaranteed delivery time, perfect supervision ability, and guaranteed quality.
