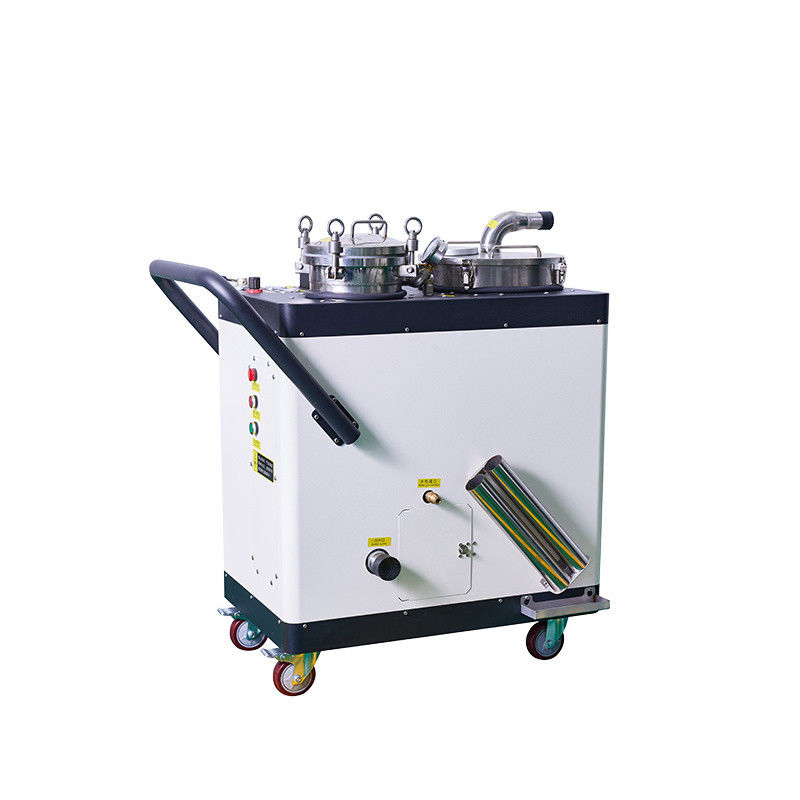

Multi functional CNC slag cleaning machine, equipped with high-pressure flushing gun
Product Details:
| Place of Origin: | China |
| Brand Name: | Diang Tianke |
Payment & Shipping Terms:
| Price: | Negotiable |
|---|---|
| Delivery Time: | 7-15 workdays |
| Payment Terms: | LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram |
|
Detail Information |
|||
| Installation: | Not Have | Centrifuge Type: | Not Have |
|---|---|---|---|
| Distillation Equipment Type: | Not Have | Extraction Tower Type: | Not Have |
| Pressure: | High Pressure | Condition: | New |
| Equipment Weight: | 108kg | Working Air Pressure: | 0.2-0.5MPa |
| Working Voltage: | AC220V | Flow: | 8000L/H |
| Transport Package: | Wooden Box | Specification: | 790*530*1000mm |
| Trademark: | Datk | Origin: | China |
| After-sales Service: | Life | Warranty: | One Year |
| Type: | Centrifuge | Object: | Cutting Fluid |
| Separation Mode: | Filter Type | Operating Type: | Continuous Type |
| Highlight: | CNC slag cleaning machine,CNC Slag Cleaning Machine |
||
Product Description
Multi functional CNC slag cleaning machine, equipped with high-pressure flushing gun
Company Profile
Di'ang Tianke is a one-stop intelligent purification equipment and solution provider for metalworking fluids. The company has been continuously developing and improving new products based on market demand, helping machining enterprises solve problems such as cutting fluid use, maintenance, and waste liquid purification. The use of Di'ang Tianke's cutting fluid purification equipment can help enterprises extend the service life of cutting fluids, reduce operating costs, and improve production efficiency.
Equipment parameters
Equipment size: 1200 * 650 * 1150mm
Packaging box size:
Equipment weight: 168kg
Working pressure: 0.2-0.5MPa
Working voltage: AC220V
Equipment power: 3000W
First level filtration accuracy: 0.5mm
Secondary filtration accuracy: 0.2mm (customizable)
Wet extraction flow rate: 7000-8000L/h
Maximum dry suction force: -0.02MPa
Water gun flushing pressure: 0.4MPa
main features
- Simple structure and fast cleaning speed: The liquid tank cleaning machine has a compact design, high cleaning efficiency, and can quickly complete the pumping and cleaning of a large amount of cutting fluid.
- Easy to maintain: This device has low maintenance costs and can operate stably for a long time, reducing the maintenance burden on enterprises.
- Efficient filtration: Adopting a multi-stage filtration device, it can filter out metal cutting and other impurities in the cutting fluid while pumping, achieving solid-liquid separation.
- Multifunctional: It can not only be used for purifying cutting fluids and cleaning oil sludge and debris in storage tanks, but also as a cleaning equipment for liquid fluids such as water and oil splashed out in machining workshops.
- Energy saving and environmental protection: By purifying and treating emulsions online, recycled water can be recycled and reused, reducing the total amount of emulsion emissions, lowering enterprise emission costs, and saving freshwater resources.
Product Features:
1. High flow rate, strong suction, fast slag cleaning and liquid replacement speed, without affecting production progress;
2. Handheld mode, 360 degree comprehensive cleaning, convenient and fast;
3. High quality stainless steel material, seamless welding technology, sheet metal paint appearance, corrosion-resistant and durable;
4. Adhering to the principles of ergonomics, it promotes effortless and convenient operation, and is easy to grasp by hand;
5. Compressed air drive, no power consumption, 0 consumables;
6. Easy to clean every corner of the workshop, the water tank can be sucked on the ground.
Company strength:
1, Striving for excellence and putting service first: exploring the application field of cutting fluid and continuously creating value for customers;
2, Strong research and development capabilities: With over 10 years of experience in the industry, we provide technical support and services to customers, offering machining solutions and technical support;
3, Strict quality management system: All of our products accept customized services with the goal of providing customers with high-quality products;
4, Perfect after-sales service: sufficient production capacity, guaranteed delivery time, perfect supervision ability, and guaranteed quality.
