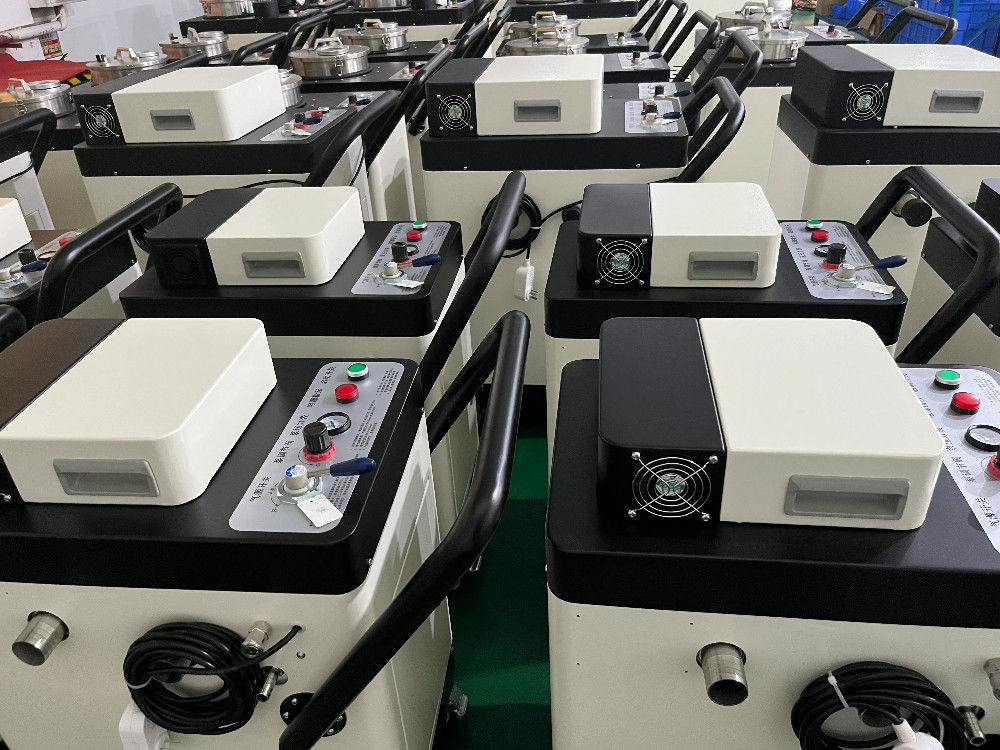

Cutting fluid floating oil collection equipment, Chinese manufacturer

Cutting fluid floating oil collection equipment, Chinese manufacturer

Product Details:

Place of Origin: China
Brand Name: Diang Tianke
Certification: ISO9001

Payment & Shipping Terms:

Price: Negotiable
Delivery Time: 7-15 workdays
Payment Terms: LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Get Best Price Contact Now

Detail Information
Centrifuge Type: Disc Centrifuge Distillation Equipment Type: Steam Distillation Equipment
Extraction Tower Type: Vibration Plate Tower Pressure: High Pressure
Condition: New Weight: 49kg
Size: 650*400*800mm Voltage: 220V
Power: 150W Ozone Value: 500mg/M3
Processing Capacity: 1000-3000L/H (Adjustable) Transport Package: Wooden Case
Specification: Wooden Box Size750*450*900mm Trademark: Datk
Origin: China After-sales Service: Life
Warranty: One Year Type: Separating Plant
Separation Mode: Filter Type Operating Type: Continuous Type
Installation: Vertical

Product Description

Cutting fluid floating oil collection equipment, Chinese manufacturer

Product Introduction
The oil-water separator is a cutting fluid oil-water separator that integrates oil removal, impurity removal, and deodorization. Three stage separation, efficient operation of imported skim oil steel strip, visible separation effect, oil-water separation rate up to 98%. The oil-water separator is equipped with a nano aeration sterilization device, which can kill anaerobic bacteria in the cutting fluid and effectively prevent the cutting fluid from smelling and deteriorating. Cutting fluid oil-water separation makes the cutting fluid cleaner and has a longer service life.



Application area
Cutting fluid oil-water separators are widely used in industries such as mechanical processing, automotive manufacturing, aerospace, and mold processing. In these fields, it can perform oil-water separation treatment on cutting fluids used in various CNC machine tools, machining centers, and other equipment to ensure the smooth progress of the machining process.


Cutting fluid floating oil collection equipment, Chinese manufacturer 0


Product Functions:
1. Fast oil-water separation, effectively removing floating oil, mold and particulate matter on the surface of cutting fluid;
2. By using the explosive sterilization device inside the machine, a large number of organic bacteria such as anaerobic bacteria that grow in the mixed liquid can be effectively killed, avoiding the cutting fluid from becoming smelly, extending the service life of the cutting fluid, reducing tool wear, and improving the working environment in the workshop;
3. Significantly reducing the frequency of cutting fluid replacement not only lowers the purchase cost of cutting fluid, but also reduces the environmental cost of treating waste liquid.
4. The device is energy-saving, easy to operate, one click start, easy to maintain, safe and reliable, and meets national equipment safety standards.

Equipment parameters
Processing capacity 1000-3000L/H (adjustable)
Ozone value 500mg/m3
Floating oil removal rate Over 98%
Voltage 220V
Power 150W
External dimensions 620 * 420 * 850mm
Applicable object water-based cutting fluid equipment
Weight :49kg
Filtering accuracy: 0.3mm (customizable)
Ozone value: 100-150mg/H
Floating oil removal rate: 98% or above


CNC Cutting Fluid Floating Oil Removal Mobile Small Oil Removal Machine Can Purify Online



usage method:
1.Firstly, install the oil-water separator correctly in the appropriate position to ensure stability and firmness.
2. Connect the inlet and outlet pipes to ensure that the pipelines are unobstructed.
3. Place the floating ball into the cutting fluid to be treated, ensuring that the floating ball is balanced and floats on the surface.
4. Observe the separation process to ensure that the separation effect meets expectations.
5. Regularly clean the separated oil and impurities to maintain the normal operation of the equipment.


CNC Cutting Fluid Floating Oil Removal Mobile Small Oil Removal Machine Can Purify Online


CNC Cutting Fluid Floating Oil Removal Mobile Small Oil Removal Machine Can Purify Online                                                   (Before purification)
CNC Cutting Fluid Floating Oil Removal Mobile Small Oil Removal Machine Can Purify Online                                                   (After purification)
