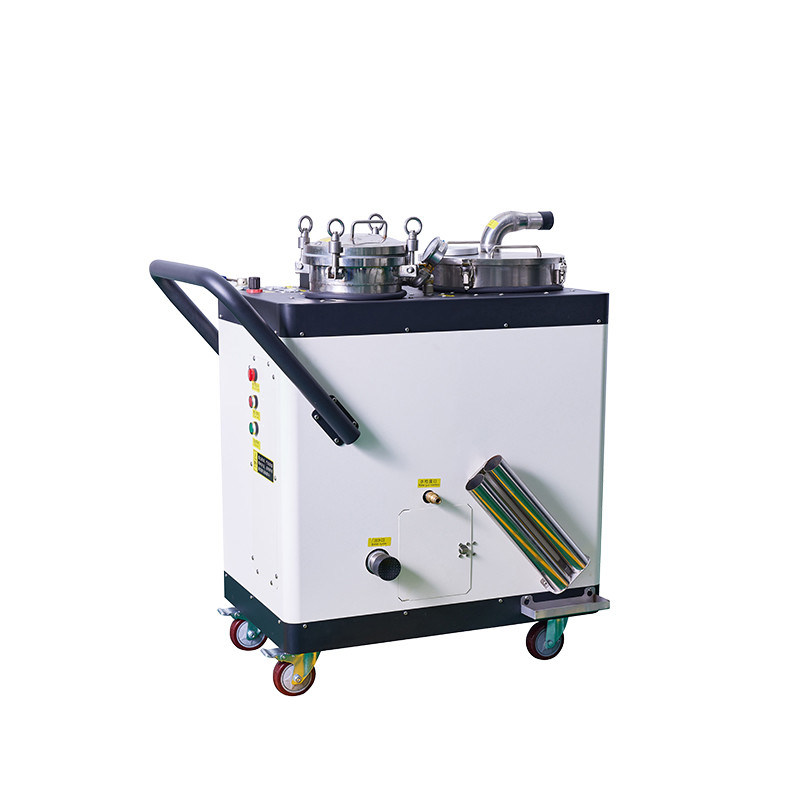

Machine tool cleaning equipment, with high suction and wide cleaning range
Product Details:
| Place of Origin: | China |
| Brand Name: | Diang Tianke |
Payment & Shipping Terms:
| Price: | Negotiable |
|---|---|
| Delivery Time: | 7-15 workdays |
| Payment Terms: | LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram |
|
Detail Information |
|||
| Installation: | Not Have | Centrifuge Type: | Not Have |
|---|---|---|---|
| Distillation Equipment Type: | Not Have | Extraction Tower Type: | Not Have |
| Pressure: | High Pressure | Condition: | New |
| Equipment Weight: | 108kg | Working Air Pressure: | 0.2-0.5MPa |
| Working Voltage: | AC220V | Flow: | 8000L/H |
| Transport Package: | Wooden Box | Specification: | 790*530*1000mm |
| Trademark: | Datk | Origin: | China |
| After-sales Service: | Life | Warranty: | One Year |
| Type: | Centrifuge | Object: | Cutting Fluid |
| Separation Mode: | Filter Type | Operating Type: | Continuous Type |
| Highlight: | Machine tool cleaning equipment |
||
Product Description
Machine tool cleaning equipment, with high suction and wide cleaning range
Product Introduction
Precision filtration car wash is a multifunctional cleaning vehicle that integrates functions such as slag removal and fluid replacement, wet dry dual-use cleaning, precision filtration, and high-pressure cleaning. It can meet the overall cleaning needs of workshops and machine tools, and can clean dirt such as workshop floors, machine surfaces, water tank oil sludge, and debris. High precision filtration of cutting fluid makes it cleaner and has a longer service life. Wide applicability, convenient and fast, zero consumables, safe and worry free!
Application scope:
The precision filtration cleaning machine has a wide range of applications, from routine cleaning work to cutting fluid slag removal and replacement, high-pressure flushing function, all of which reflect its professional quality. Vacuum cleaning, iron chip suction, slag removal, and other functions can be completed in one go, and can be used in conjunction with a series of equipment such as machine tools. The equipment is designed for dust cleaning, with obvious effects, strong suction, long-lasting non-stop operation, easy cleaning, and no consumables.
Equipment parameters
Equipment size: 1200 * 650 * 1150mm
Packaging box size:
Equipment weight: 168kg
Working pressure: 0.2-0.5MPa
Working voltage: AC220V
Equipment power: 3000W
First level filtration accuracy: 0.5mm
Secondary filtration accuracy: 0.2mm (customizable)
Wet extraction flow rate: 7000-8000L/h
Maximum dry suction force: -0.02MPa
Water gun flushing pressure: 0.4MPa
main features
- Simple structure and fast cleaning speed: The liquid tank cleaning machine has a compact design, high cleaning efficiency, and can quickly complete the pumping and cleaning of a large amount of cutting fluid.
- Easy to maintain: This device has low maintenance costs and can operate stably for a long time, reducing the maintenance burden on enterprises.
- Efficient filtration: Adopting a multi-stage filtration device, it can filter out metal cutting and other impurities in the cutting fluid while pumping, achieving solid-liquid separation.
- Multifunctional: It can not only be used for purifying cutting fluids and cleaning oil sludge and debris in storage tanks, but also as a cleaning equipment for liquid fluids such as water and oil splashed out in machining workshops.
- Energy saving and environmental protection: By purifying and treating emulsions online, recycled water can be recycled and reused, reducing the total amount of emulsion emissions, lowering enterprise emission costs, and saving freshwater resources.
Company Profile
Guangzhou Di'ang Tianke Automation Equipment Co., Ltd. is committed to helping customers in the metal processing field solve a series of pollution problems caused by the use of chemical oils in the workshop. By using our company's technology and equipment, we can help customers reduce the generation of "wastewater, exhaust gas, and waste residue" from the source, improve the extensive management of workshops, reduce the cost of end of pipe treatment for enterprises, and enable workshops to easily implement clean production at low cost, achieving the goal of "energy conservation, consumption reduction, pollution reduction, and efficiency enhancement".
